OpenID Connect

OpenID Connect is a standard that extends OAuth 2.0 to add an identity layer. Prisma Cloud supports integration with any standard Open ID Connect (OIDC) provider that implements both OpenID connect core and OpenID connect discovery. Prisma Cloud supports the authorization code flow only.

This page includes instructions to integrate with the following providers:

• PingOne
• Okta
• Azure Active Directory

Use the https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc URL only to configure the integration between services. The API is not included in our reference guide because the URL is only enabled as a configuration value.

PingOne

Integrate with PingOne.

You need to configure Compute as an OIDC app. When configuring your app:

• The Start SSO URL must point to the https://<CONSOLE>:<PORT>/callback URL.
• The Redirect URI must point to the https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc URL.
• UserInfo must include sub, idpid, and name.
• All of the following scopes must be included for OpenID.

  • OpenID Connect (openid)
  • OpenID profile
  • OpenID Email
  • OpenID address
  • OpenID Phone
  • Groups

Update Ping callback URL

Update the callback URL.

1. Log into the Ping web portal.
2. Click Applications, and then click the OIDC tab.
3. Click on the arrow button nest for your app.
4. Click on the pencil icon on the right side.
5. Click on Authentication Flow.
6. In REDIRECT URIS, enter the following URL to enable the service-to-service integration:

   https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc.

Create new user and join to group

1. In the Ping web portal, click Users, and then click the Users tab.
2. Click Add users, and choose the Create New User option.
3. Fill the fields for Password, Username (should be your email), First Name, Last Name, and Email.
4. In the Membership field, click Add, and choose a group.
5. Click Save.

Okta

Integrate with Okta.

• Initiate Login URI (Okta) must point to https://<CONSOLE>:<PORT>/callback.
• Redirect URI must point to the https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc URL.
• UserInfo must include sub, idpid, name.
• Scopes:

  • All of the following scopes must be included for OpenID: OpenID Connect (openid), OpenID profile, OpenID Email, OpenID address, OpenID Phone, Groups.
  • All of the following scopes must be included for Okta: okta.groups.manage, okta.groups.read.

Update Okta callback URL

Update the callback URL.

1. Log into Okta.
2. Click on Applications and click on your application.
3. Click the General tab, and then click Edit.
4. Update Login redirect URIs. Enter the following URL to enable the service-to-service integration:

   https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc
5. Click Save.

Configure Okta as an Identity Provider

Configure Okta as an identity provider in Prisma Cloud with the following steps.

1. Log into Prisma Cloud Console.
2. Go to Manage > Authentication > Identity Providers > OpenID Connect.
3. Enable OpenID Connect.
4. Fill in the settings.

   1. For Client ID, enter the client ID.
   2. For Client Secret, enter the client secret.
   3. For Issuer URL, enter:

      https://sso.connect.pingidentity.com/<CLIENT_ID>.
   4. For Group scope, select groups.
   5. (Optional) Enter your certificate.
   6. Click Save.

Azure Active Directory (AD)

To integrate with Azure Active Directory (AD), you must register Prisma Cloud as an Open ID Connect (OIDC) application in Azure and configure Azure AD as an identity provider in Prisma Cloud.

1. Go to your Azure console.
2. Find the Azure AD service.
3. Click the app registration button and select New registration
4. Enter a name and select Accounts in this organizational directory only as the supported account type.
5. Under Redirect URI select Web console URL enter the following URL to enable the service-to-service integration: https://<CONSOLE>:<PORT>/api/v1/authenticate/callback/oidc
6. Click on Register the app.
7. To add the secret for the client, go to certificates & secrets.
8. Add a new secret for the client, copy and store it for later use.

   You can only view the value of the secret when you create it. Copy and store the secret safely for later use.

Configure Groups in Azure AD

1. To add the needed claim, go to Token Configuration.

   1. Select Add group claim
   2. Select the Groups assigned to the application option.
   3. Keep the default values and click Add.

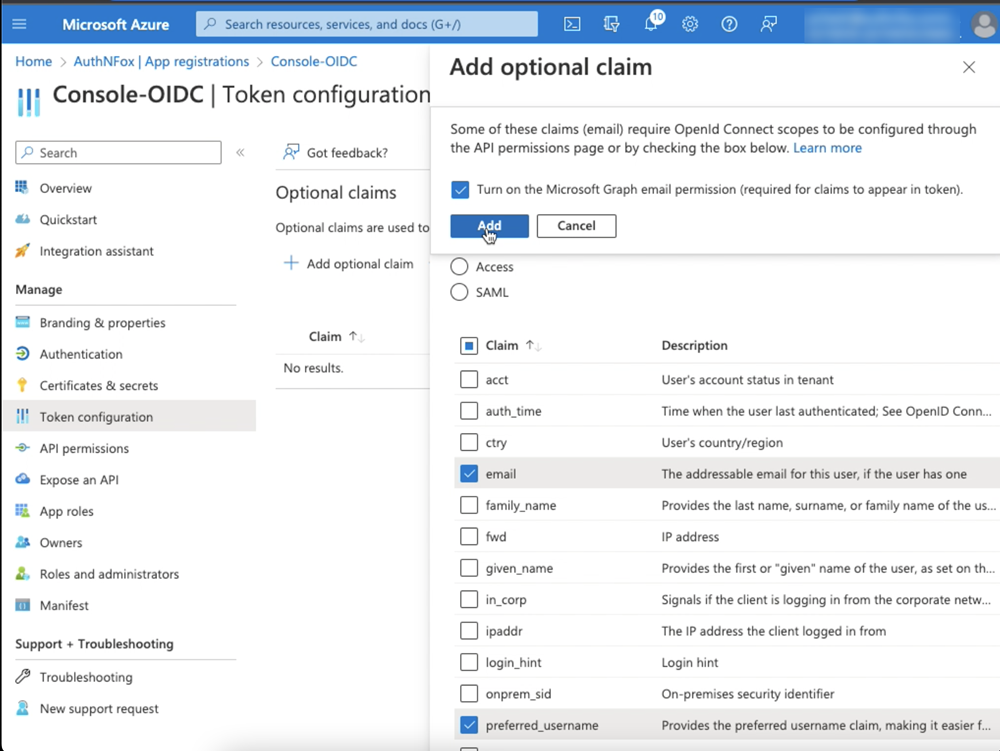

   4. Click Add optional claim and select Token type - ID.
   5. Select the email and preferred_username claims.
   6. Turn on the Microsoft Graph email permission, while saving these claims.

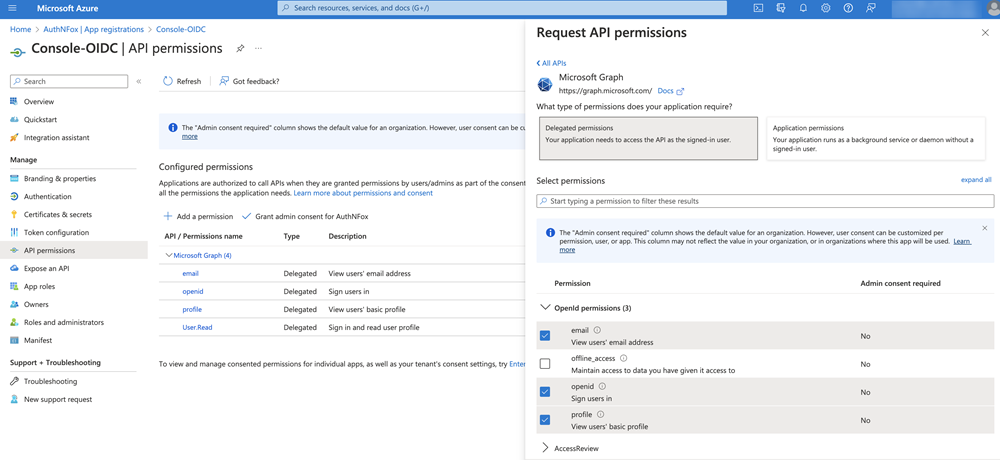

2. Go to the API permissions and click Add a permission.

   1. Under Microsoft API select Microsoft Graph.
   2. Select Delegated permissions
   3. Select email, openid, profile.


3. To create the needed application group, go to Groups in the Azure AD console.
4. Create a new group and keep the default values.

Assign the Created Group to the Prisma Cloud Console

1. Go to Enterprise applications in the Azure AD console.
2. Find the application you registered.
3. Click on Properties and check the Assignment required option.
4. Click on Assign users and groups.
5. Click add and select the previously created group.
6. Click add and select your user.
7. Go to App registrations in the Azure AD console.
8. Click on Your owned registered app.
9. Find the application you registered and click on Endpoints.
10. Open the OpenID Connect metadata JSON file.
11. Copy the value under Issuer URL from the JSON file, for example: https://login.microsoftonline.com/<TENANT_ID>/v2.0

Configure Azure AD as an Identity Provider

After you register Prisma Cloud as an Open ID Connect (OIDC) application in Azure, complete the following steps to configure Azure AD as an identity provider.

1. Go to Manage > Authentication > Identity Providers in your Prisma Cloud Console.
2. Enable OpenID Connect.

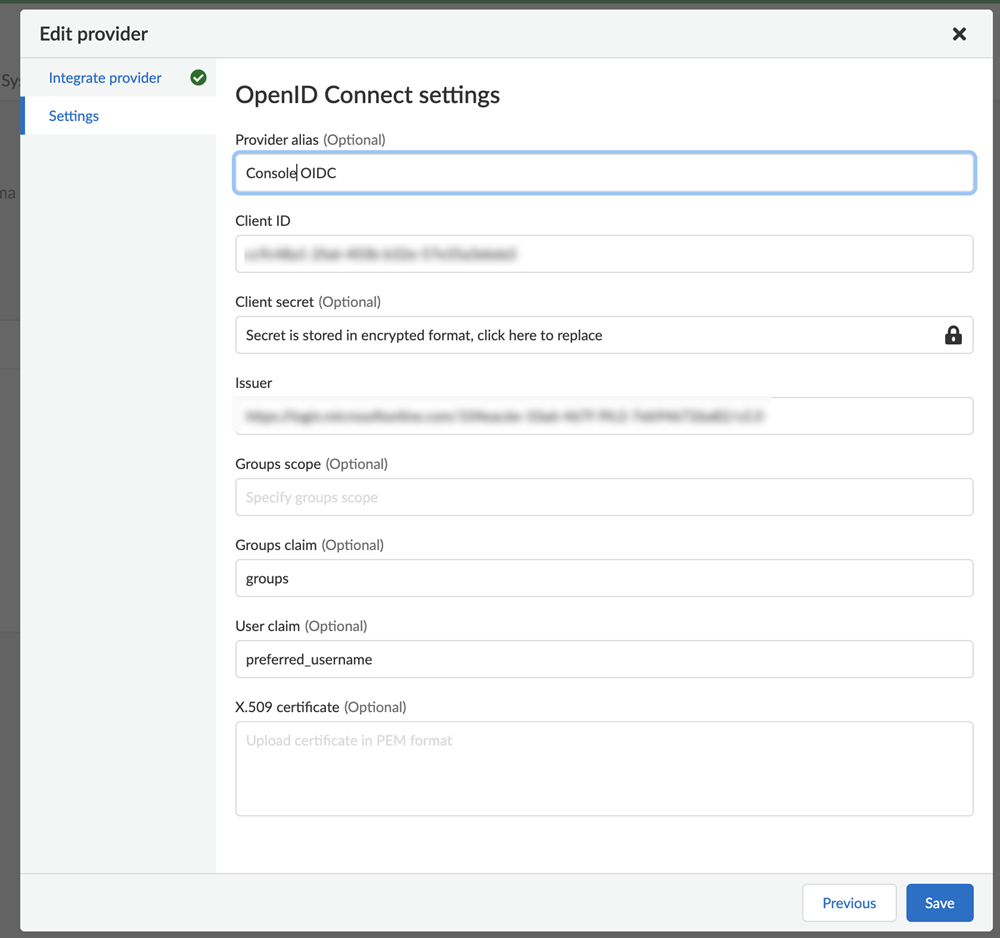

3. Enter the following information in the settings fields.

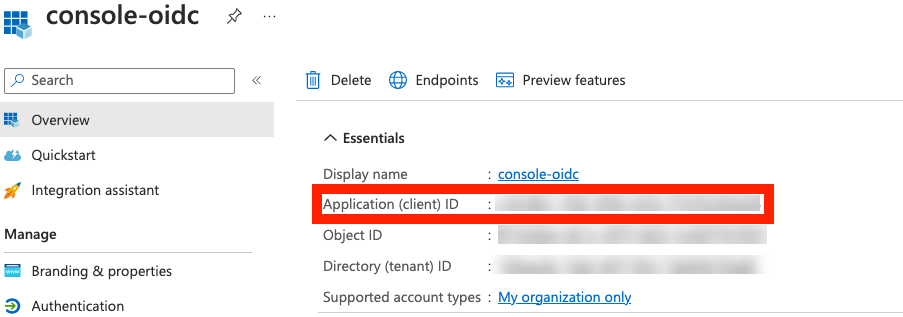

   1. Client ID: Use the Application (Client) ID found in the Azure Console under Azure AD > App registrations > Overview.


   2. Client Secret: The secret for the client that you created for the application and stored safely for later use.
   3. Issuer URL: The endpoint of the application registered in Azure AD, for example https://login.microsoftonline.com/<TENANT_ID>/v2.0
   4. Group scope: Leave this field blank.
   5. Group claim: Set this field to groups. This allows Prisma Cloud to populate the specific group names automatically.
   6. User claim: The optional claim for the user. Set this field to preferred_username for group based OIDC authentication, it is used for the audit logs.


4. Click Save.

Prisma Cloud to OIDC user identity mapping

If you intend to use the group mapping method, skip to the Prisma Cloud to OIDC provider group mapping task. Create a user for every user that should access Prisma Cloud. The Open ID Connect specification requires every username to match with a configured username in the Prisma Cloud database. Prisma Cloud uses attributes that come from OIDC to perform this match, for example you can use sub, username or email. You should use whichever value the provider is configured to send to Prisma Cloud when you configure users.

1. Go to Manage > Authentication > Users.
2. Click Add User.
3. Set Username to the GitHub user name.
4. Set Auth method to OpenID Connect.
5. Select a role for the user.
6. Click Save.
7. Test logging into Prisma Cloud Console.

   1. Logout of Prisma Cloud.

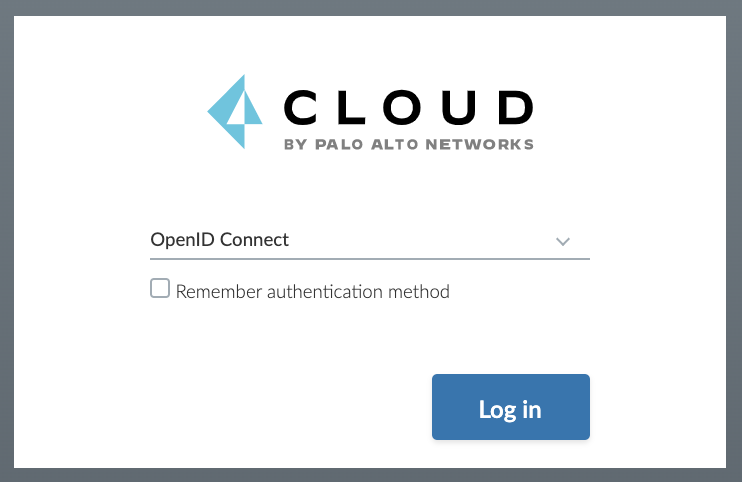

   2. On the login page, select OpenID Connect, and then click Login.


   3. You’re redirected to your OIDC provider to authenticate.
   4. After successfully authenticating, you’re logged into Prisma Cloud Console.

Prisma Cloud to OIDC provider group mapping

When you use groups to assign roles in Prisma Cloud you don’t have to create individual Prisma Cloud accounts for each user. The group value configured on the Compute side should reflect the name of the group scope in the OIDC provider. It might be something different than groups.

Groups can be associated and authenticated with by multiple identity providers. If you use Azure Active Directory (AAD), a user can’t be part of more than 200 groups at once.

1. Go to Manage > Authentication > Groups.
2. Click Add Group.
3. In Name, enter an OpenShift group name. For AAD use Azure Group’s Object ID as the group name.
4. In Authentication method, select External Providers.
5. In Authentication Providers, select OpenID Connect group.
6. Select a role for the members of the group.
7. Click Save.
8. Test logging into Prisma Cloud Console.

   1. Logout of Prisma Cloud.
   2. On the login page, select OpenID Connect, and then click Login.


   3. You’re redirected to your OIDC provider to authenticate.
   4. After successfully authenticating, you’re logged into Prisma Cloud Console.
