Active Directory Federation Services (SAML 2.0)

1. Users browse to Prisma Cloud Console.
2. Their browsers are redirected to the ADFS SAML 2.0 endpoint.
3. Users authenticate either with Windows Integrated Authentication or Forms Based Authentication. Multi-factor authentication can be enforced at this step.
4. An ADFS SAML token is returned to Prisma Cloud Console.
5. Prisma Cloud Console validates the SAML token’s signature and associates the user to their Prisma Cloud account via user identity mapping or group membership.

• Configure Active Directory Federation Services
• Configure the Prisma Cloud Console

Configure Active Directory Federation Services

1. Log onto your Active Directory Federation Services server.
2. Go to Server Manager > Tools > AD FS Management to start the ADFS snap-in.

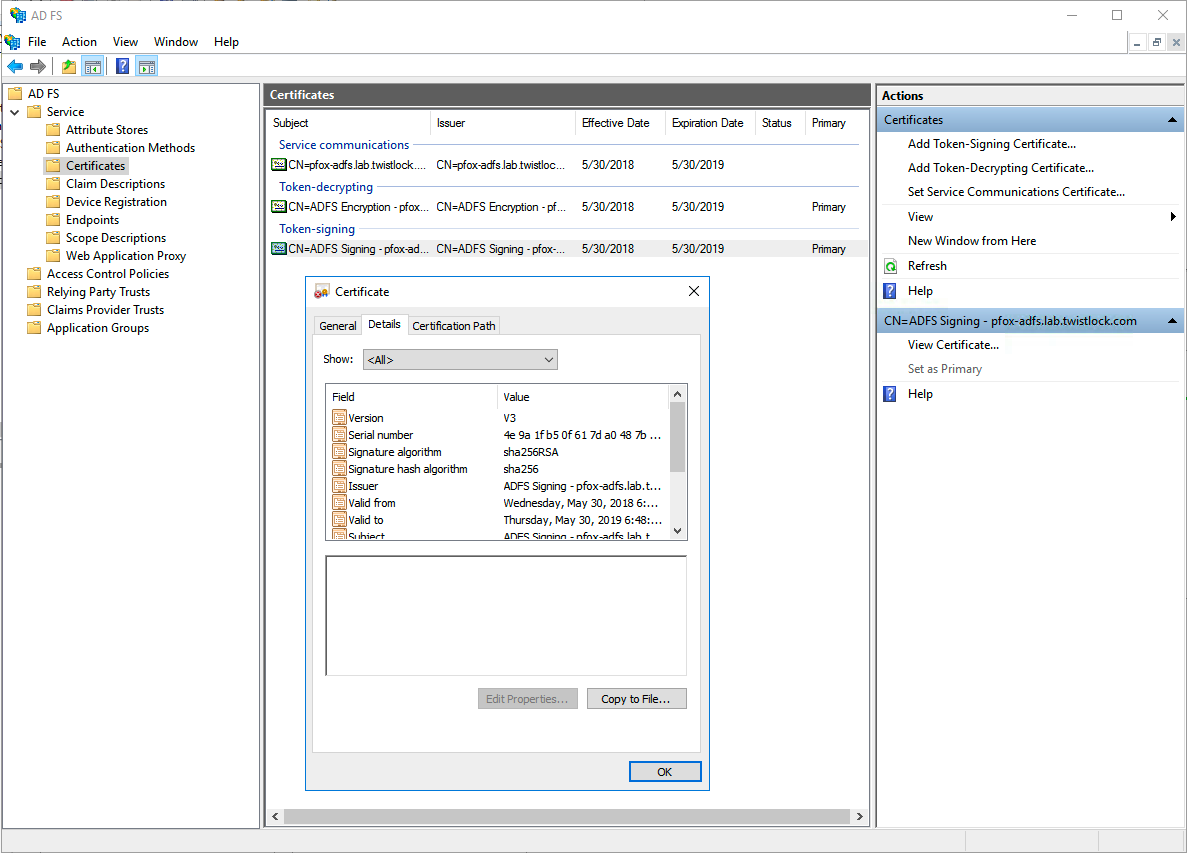

3. Go to AD FS > Service > Certificates and click on the Primary Token-signing certificate.
4. Select the Details tab, and click Copy to File…​.


5. Save the certificate as a Base-64 encoded X.509 (.CER) file. You will upload this certificate into the Prisma Cloud console in a later step.
6. Go to AD FS > Relying Party Trusts.
7. Click Add Relying Party Trust from the Actions menu.

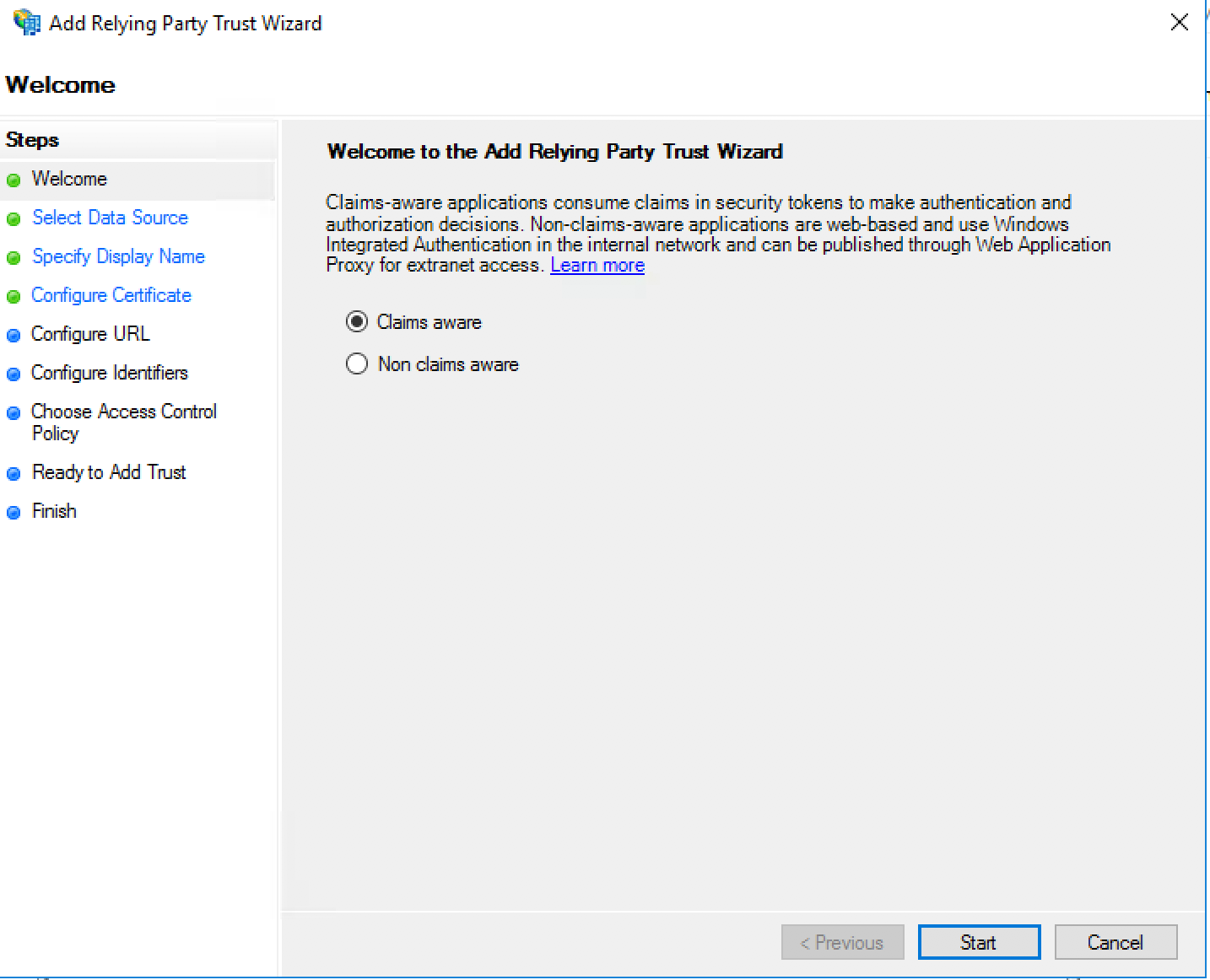

   1. Step Welcome: select Claims aware.

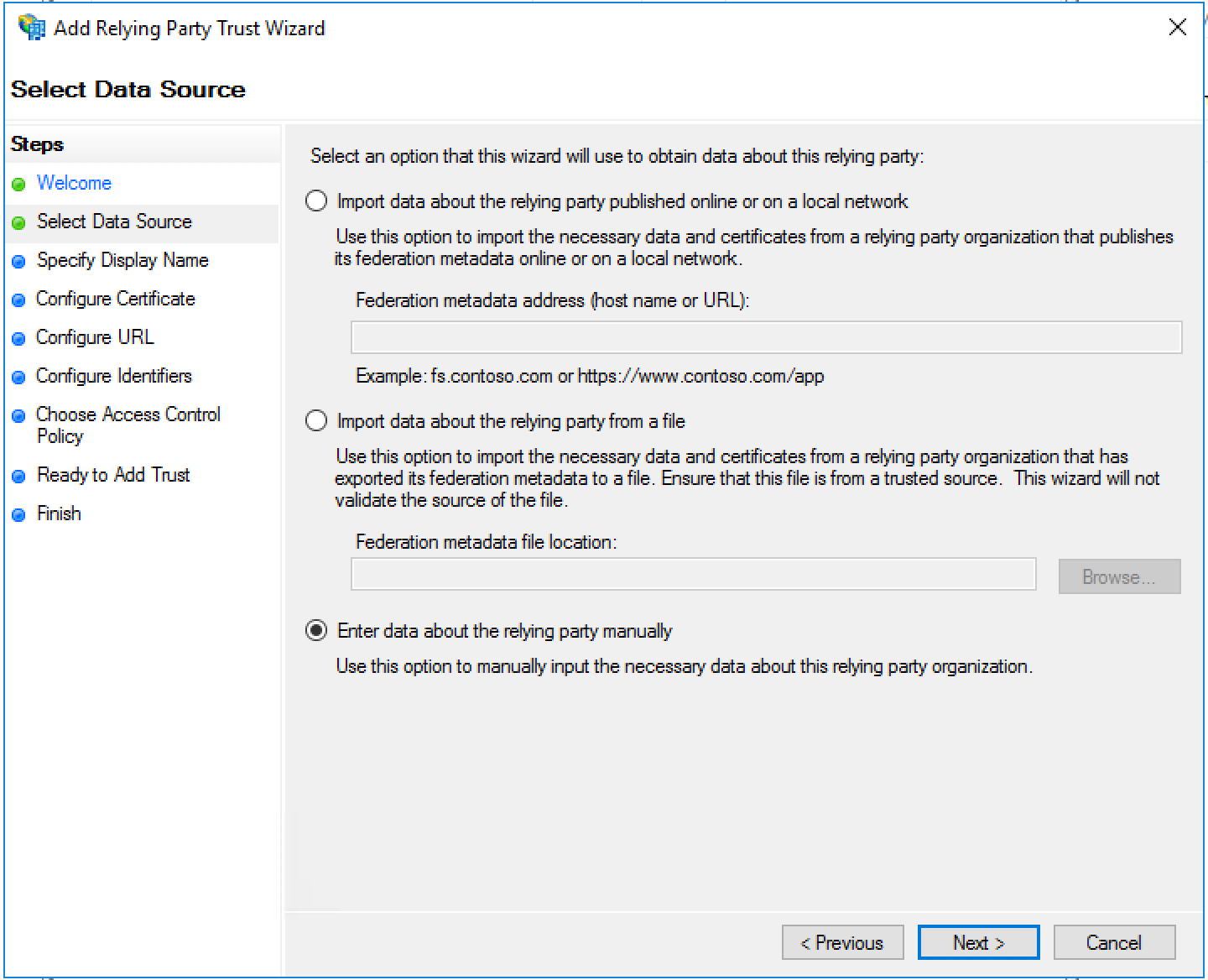

   2. Step Select Data Source: select Enter data about the relying party manually.

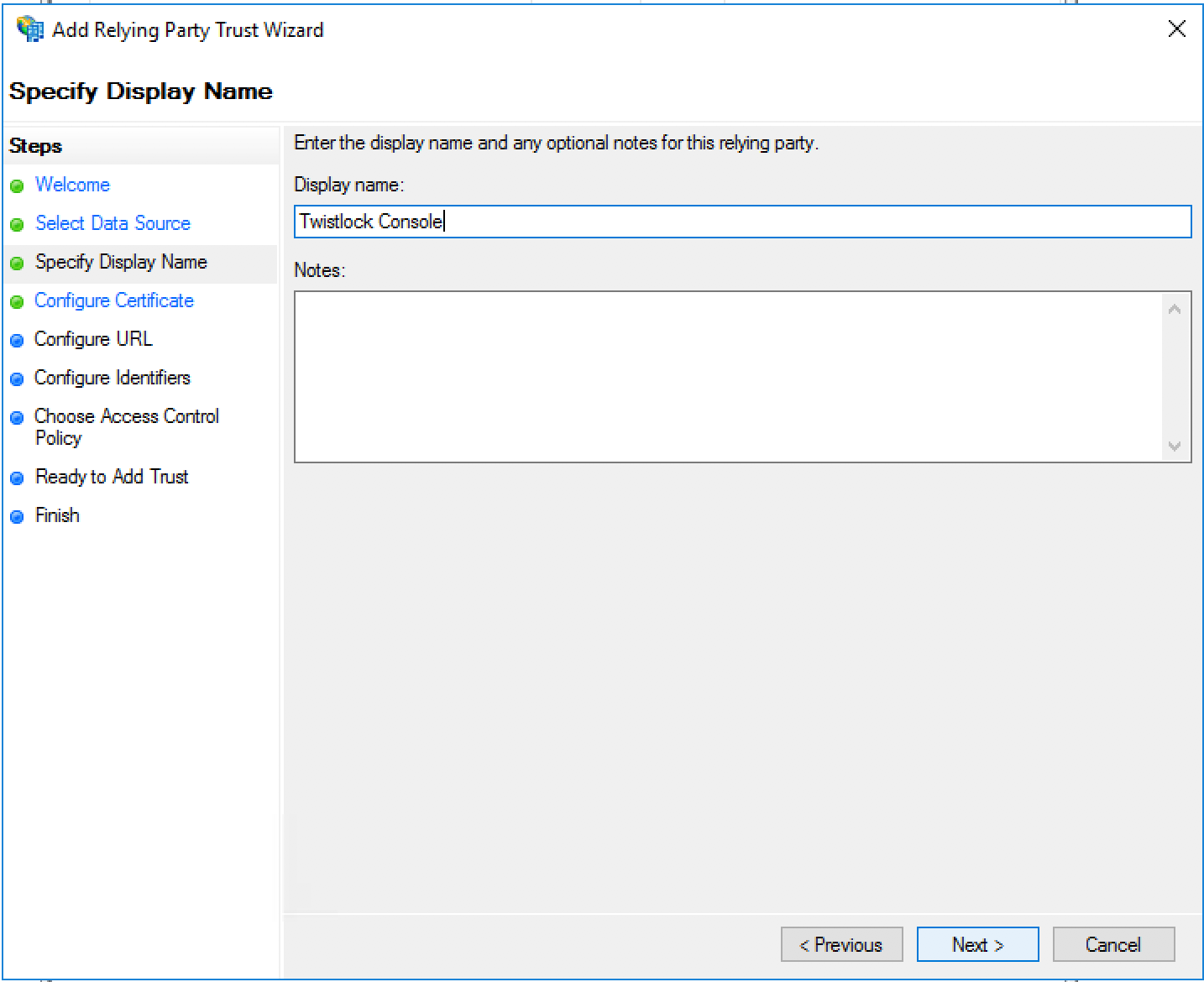

   3. Step Specify Display Name: In Display Name, enter twistlock Console.


   4. Step Configure Certificate: leave blank.

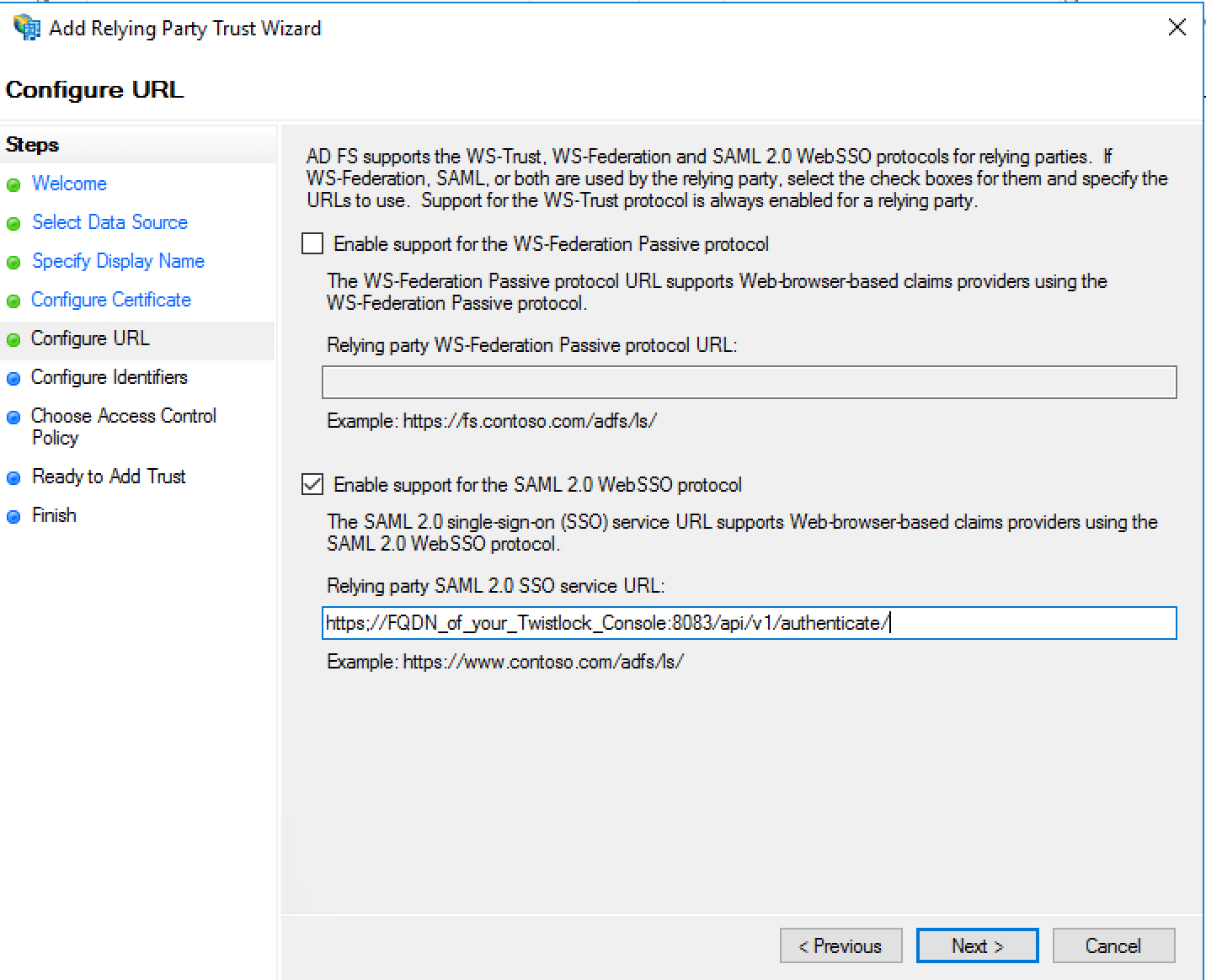

   5. Step Configure URL: select Enable support for the SAML 2.0 WebSSO protocol. Enter the URL for your Prisma Cloud Console https://<FQDN_TWISTLOCK_CONSOLE>:8083/api/v1/authenticate/.

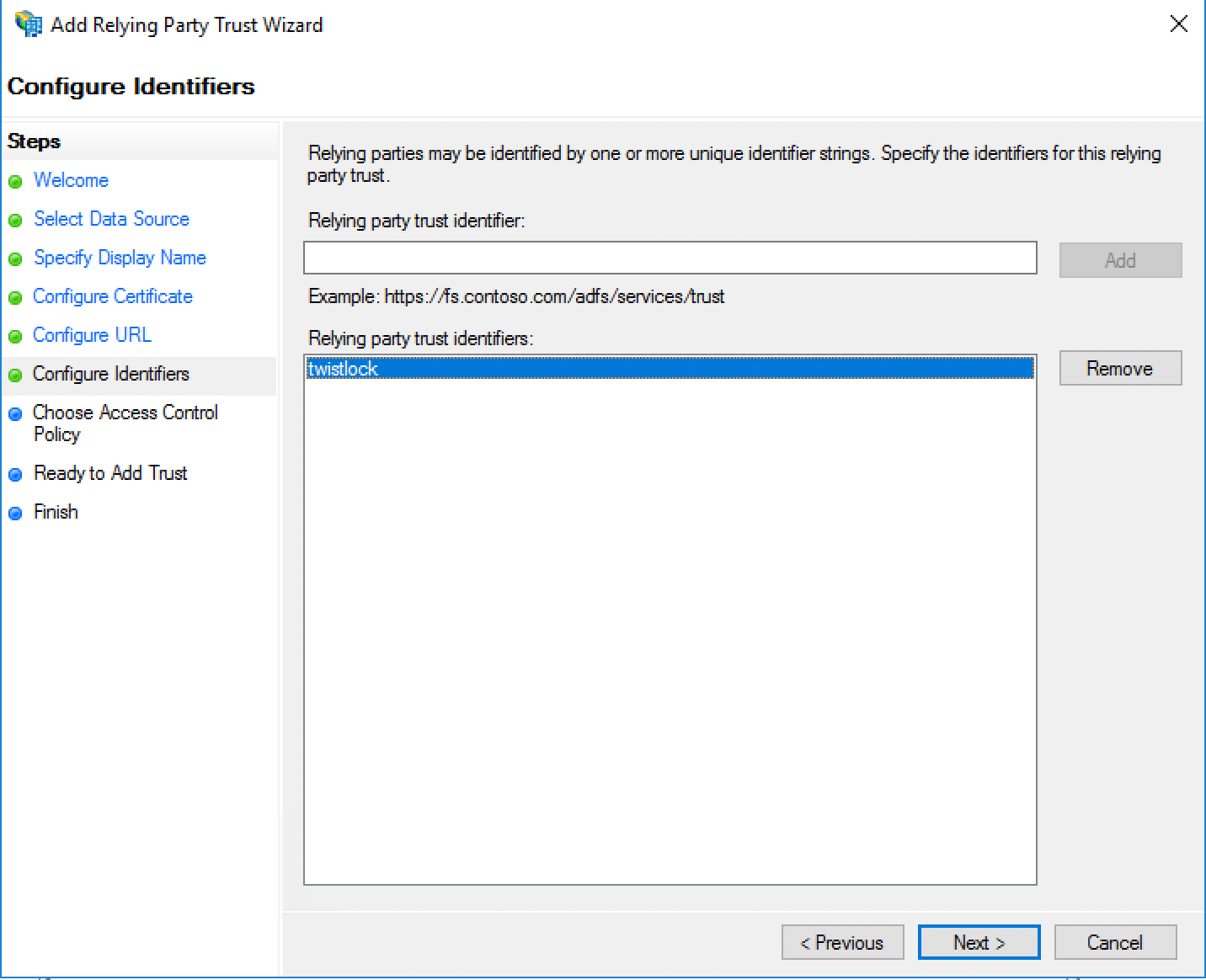

   6. Step Configure Identifiers: for example enter twistlock all lower case and click Add.

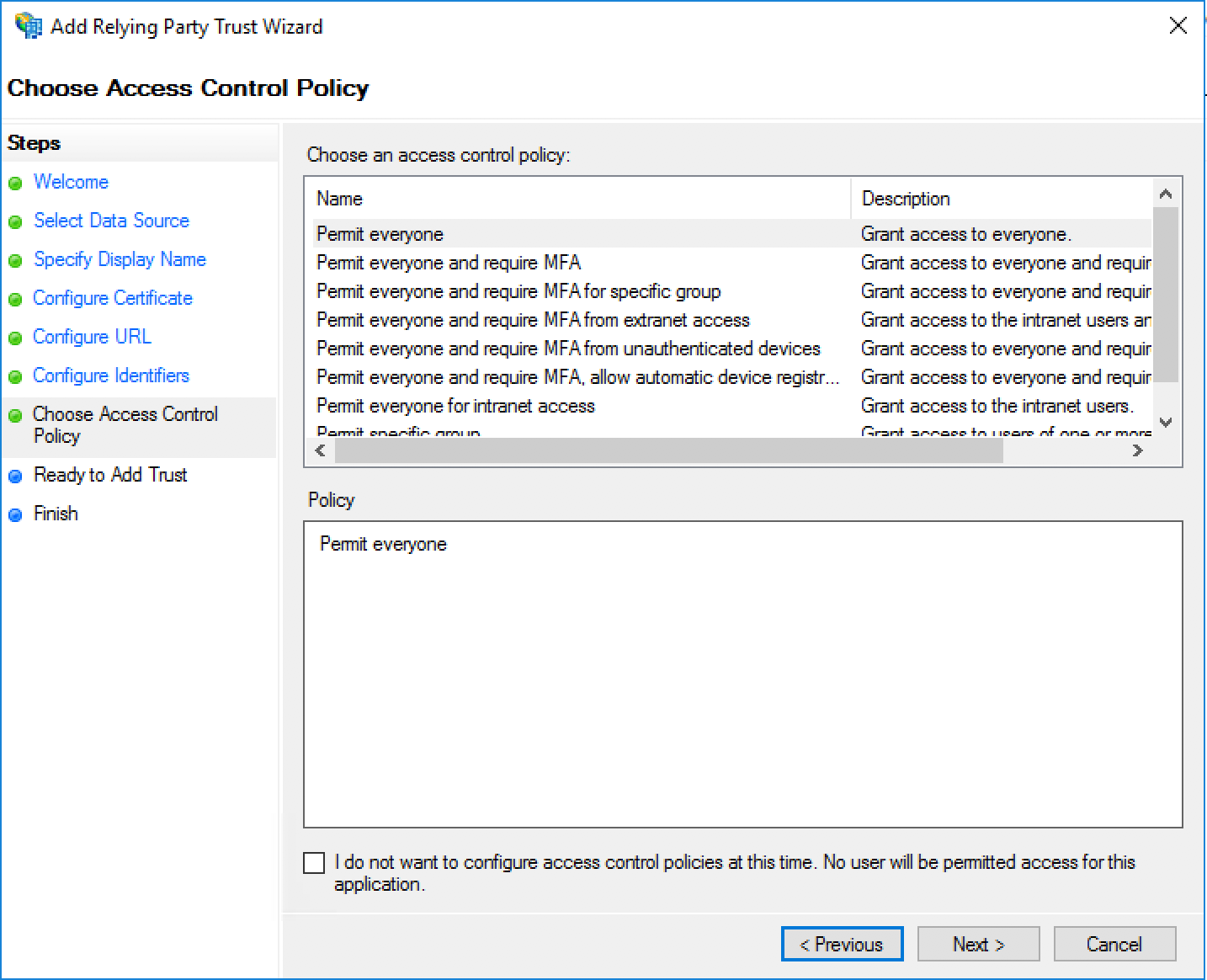

   7. Step Choose Access Control Policy: this is where you can enforce multi-factor authentication for Prisma Cloud Console access. For this example, select Permit everyone.


   8. Step Ready to Add Trust: no changes, click Next.

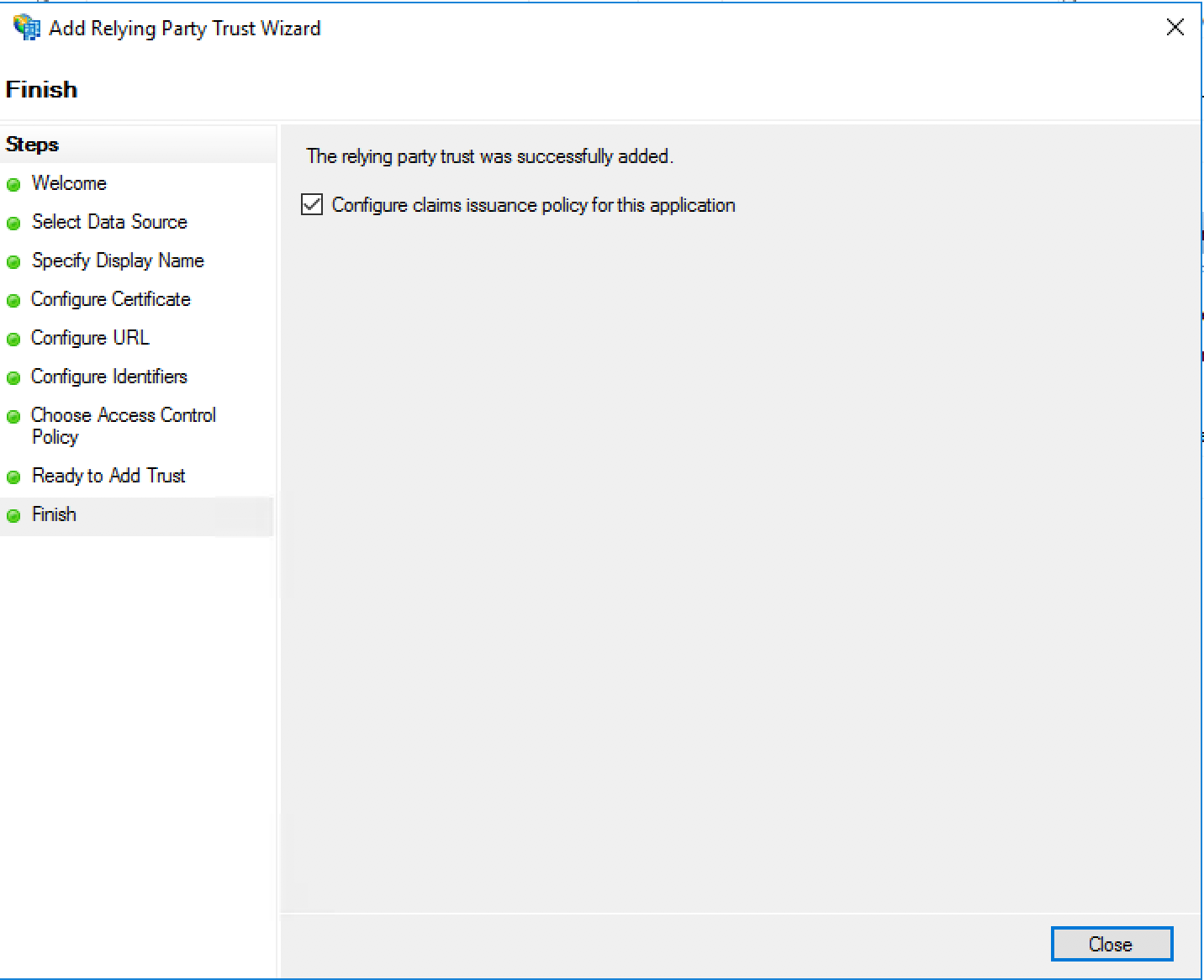

   9. Step Finish: select Configure claims issuance policy for this application then click Close.


   10. In the Edit Claim Issuance Policy for Prisma Cloud Console click Add Rule.

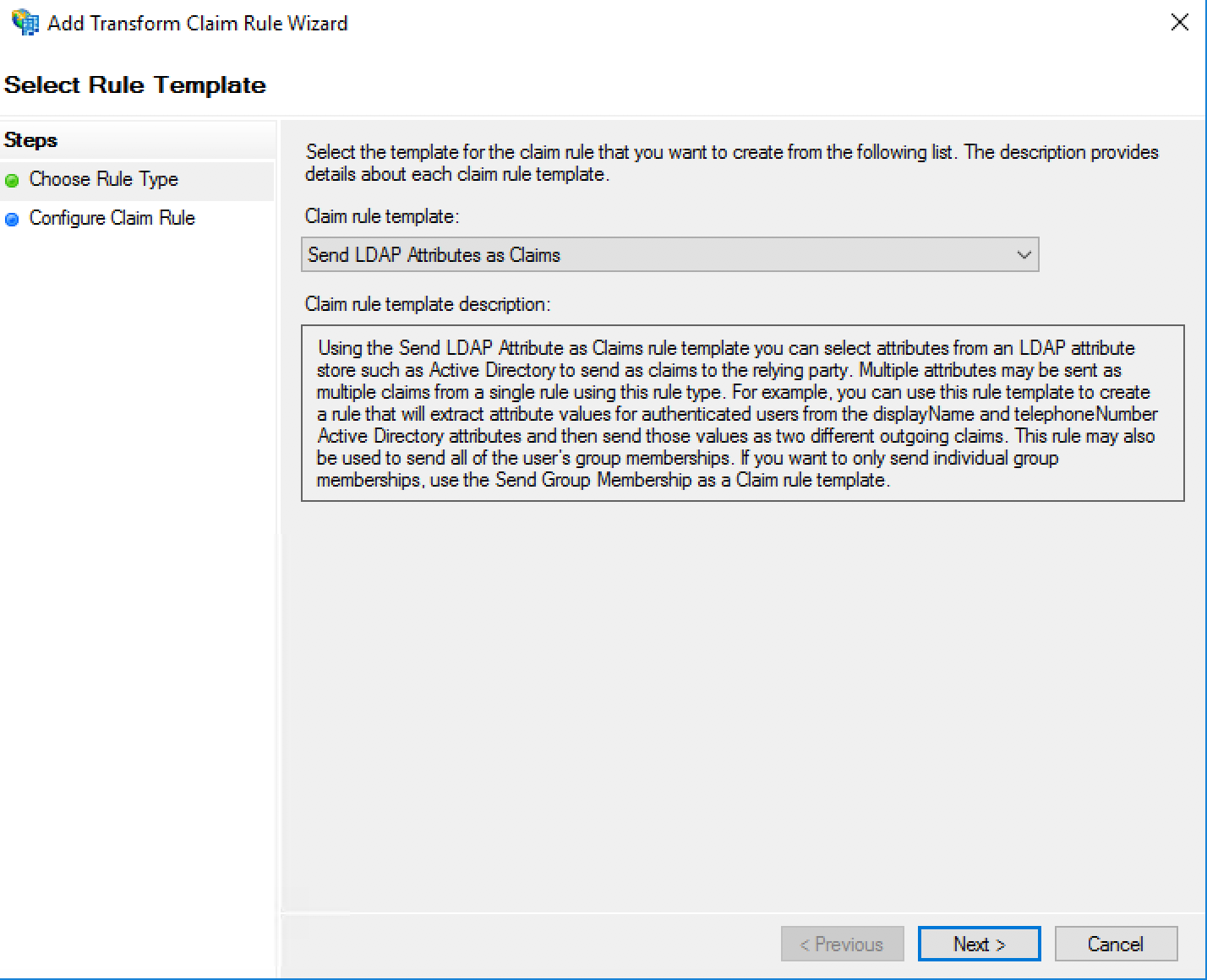

   11. Step Choose Rule Type: In Claim rule template, select Send LDAP Attributes as Claims.

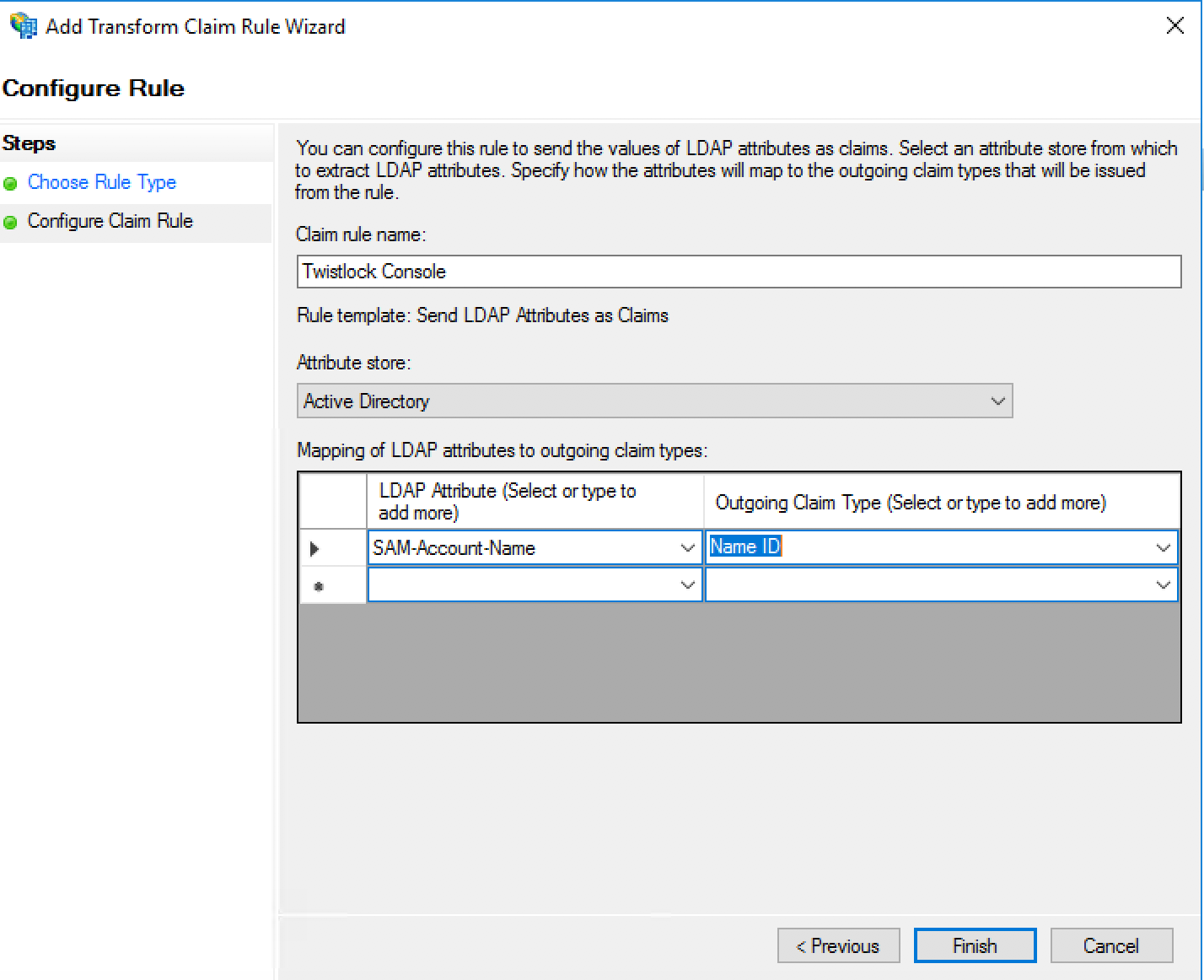

   12. Step Configure Claim Rule:

       • Set Claim rule name to Prisma Cloud Console
       • Set Attribute Store to Active Directory
       • In Mapping of LDAP attributes to outgoing claim types, set the LDAP Attribute to SAM-Account-Name and Outgoing claim type to Name ID.



         The user’s Active Directory attribute returned in the claim must match the Prisma Cloud user’s name. In this example we are using the samAccountName attribute.
   13. Click Finish.
8. Configure ADFS to either sign the SAML response (-SamlResponseSignature MessageOnly) or the SAML response and assertion (-SamlResponseSignature MessageAndAssertion) for the Prisma Cloud Console relying party trust. For example to configure the ADFS to only sign the response, start an administrative PowerShell session and run the following command:

   AskCopy

   set-adfsrelyingpartytrust -TargetName "Prisma Cloud Console" -SamlResponseSignature MessageOnly

Active Directory group membership within SAML response

1. In Relying Party Trusts, select the Prisma Cloud Console trust.
2. Click Edit Claim Issuance Policy in the right hand Actions pane.
3. Click Add Rule.
4. Claim rule template: Send Claims Using a Custom Rule.
5. Click Next.
6. Claim rule name: Prisma Cloud Groups.
7. Paste the following claim rule into the Custom rule field:

Configure the Prisma Cloud Console

1. Login to the Prisma Cloud Console as an administrator.
2. Go to Manage > Authentication > Identity Providers.
3. CLick + Add Provider

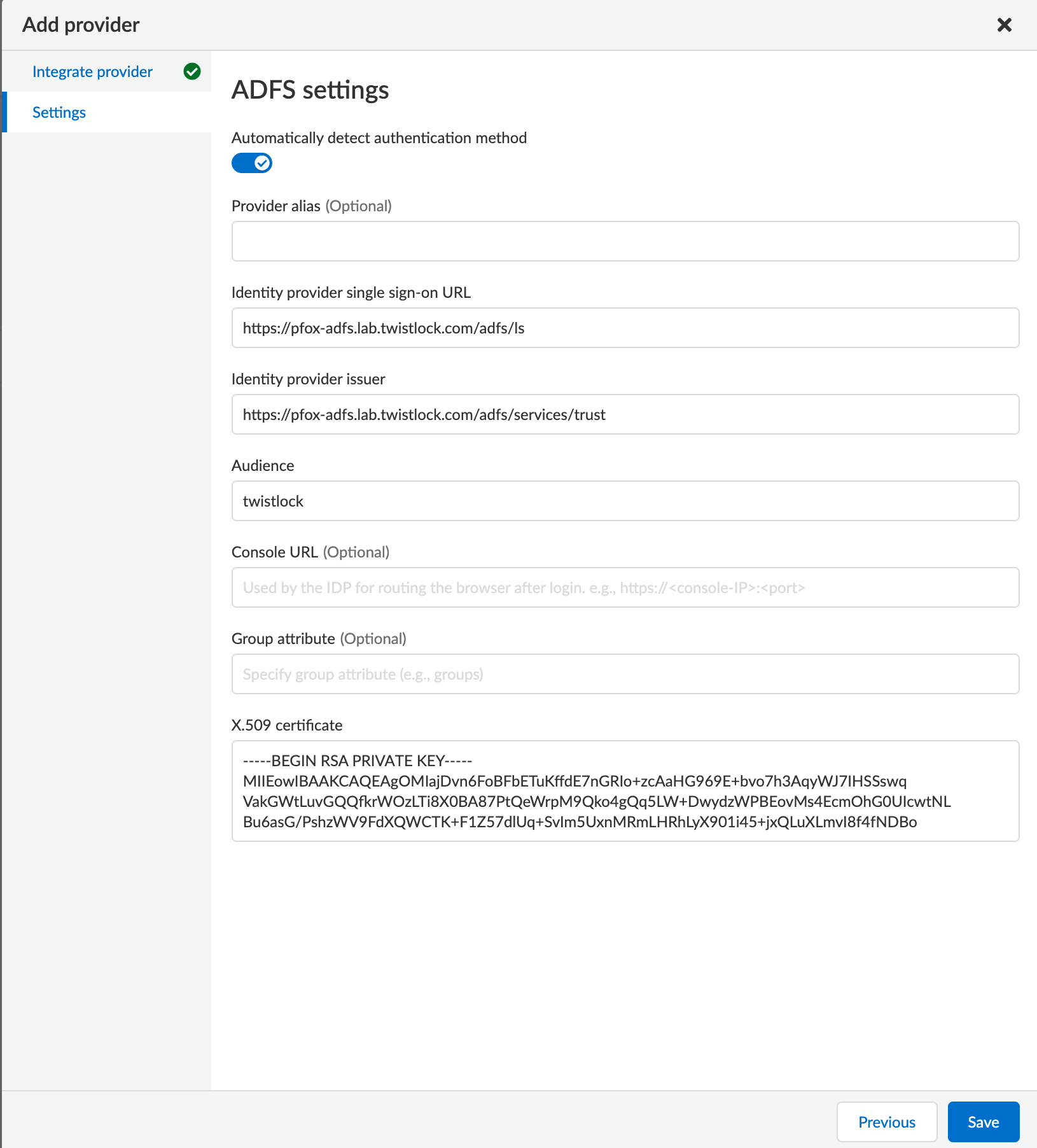

4. Set Protocol to Saml.
5. Set Identity Provider to ADFS.
6. Enable Automatically detect authentication method if the authenticating users' workstations can perform integrated windows authentication with ADFS / Active Directory
7. Enter Provider alias name to render to the user when initiating the SAML workflow from the Console.
8. In Identity provider single sign-on URL, enter your SAML Single Sign-On Service URL. For example https://FQDN_of_your_adfs/adfs/ls.
9. In Identity provider issuer, enter your SAML Entity ID, which can be retrieved from ADFS > Service > Federation Service Properties : Federation Service Identifier.
10. In Audience, enter the ADFS Relying Party identifier twistlock
11. In X.509 certificate, paste the ADFS Token Signing Certificate Base64 into this field.


12. Click Save.
13. Go to Manage > Authentication > Users.

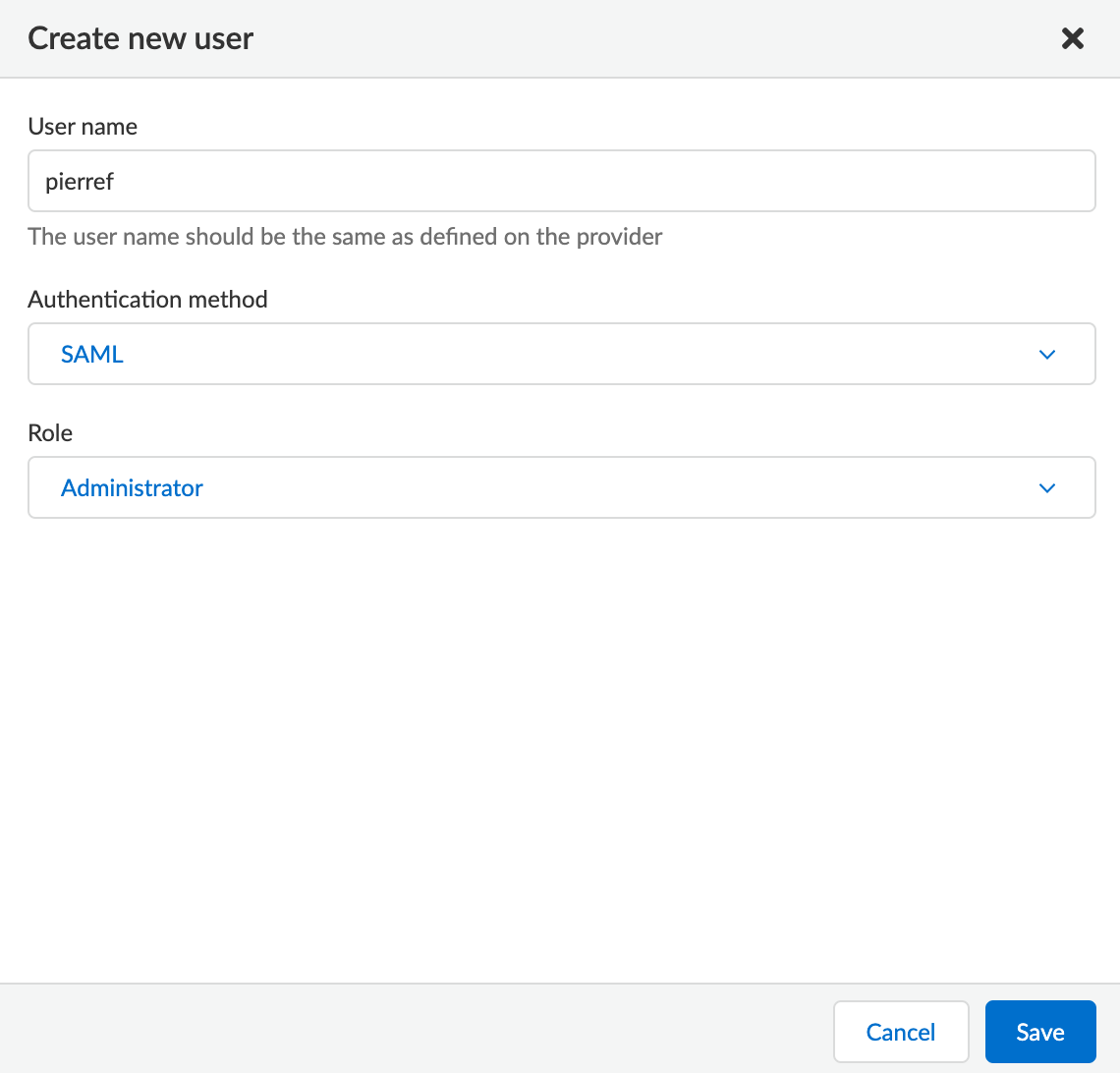

14. Click Add user.

    1. Username: Active Directory samAccountName must match the value returned in SAML token’s Name ID attribute.

       When federating with ADFS Prisma Cloud usernames are case insensitive. All other federation IdPs are case sensitive.
    2. Auth method: set to SAML.


    3. Role: select an appropriate role.
15. Click Save.

Active Directory group membership mapping to Prisma Cloud role

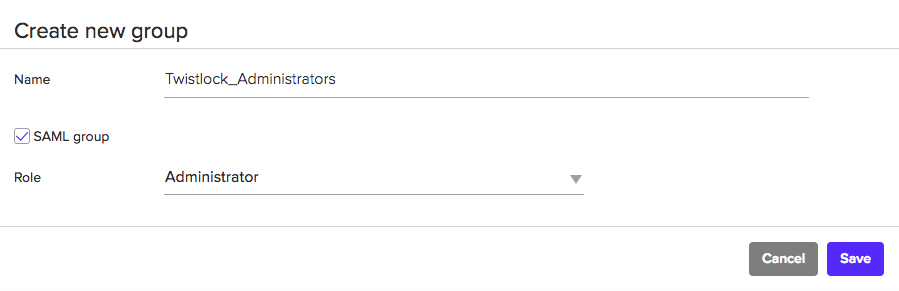

1. Go to Manage > Authentication > Groups.
2. Click Add group.
3. Group Name matches the Active Directory group name.
4. Select the SAML group radio button.
5. Assign the Role.



   The SAML group to Prisma Cloud role association does not require the creation of a Prisma Cloud user.
6. Test login into the Prisma Cloud Console via ADFS SAML federation.

   Leave your existing session logged onto the Prisma Cloud Console in case you encounter issues. Open a new incognito browser window and go to https://<CONSOLE>:8083.
