PingFederate (SAML 2.0)

Many organizations use SAML to authenticate users for web services. Prisma Cloud supports the SAML 2.0 federation protocol to access the Prisma Cloud Console. When SAML support is enabled, users can log into the Console with their federated credentials. This article provides detailed steps for federating your Prisma Cloud Console with your PingFederate v8.4 Identity Provider (IdP).

The Prisma Cloud/PingFederate SAML federation flow works as follows:

  1. Users browse to Prisma Cloud Console.

  2. Their browsers are redirected to the PingFederate SAML 2.0 endpoint.

  3. They enter their credentials to authenticate. Multi-factor authentication can be enforced at this step.

  4. A PingFederate SAML token is returned to Prisma Cloud Console.

  5. Prisma Cloud Console validates the SAML token’s signature and associates the user to their Prisma Cloud account via user identity mapping or group membership.

Prisma Cloud Console is integrated with PingFederate as a federated SAML Service Provider. The steps to set up the integration are:

Configure PingFederate

  1. Logon to PingFederate

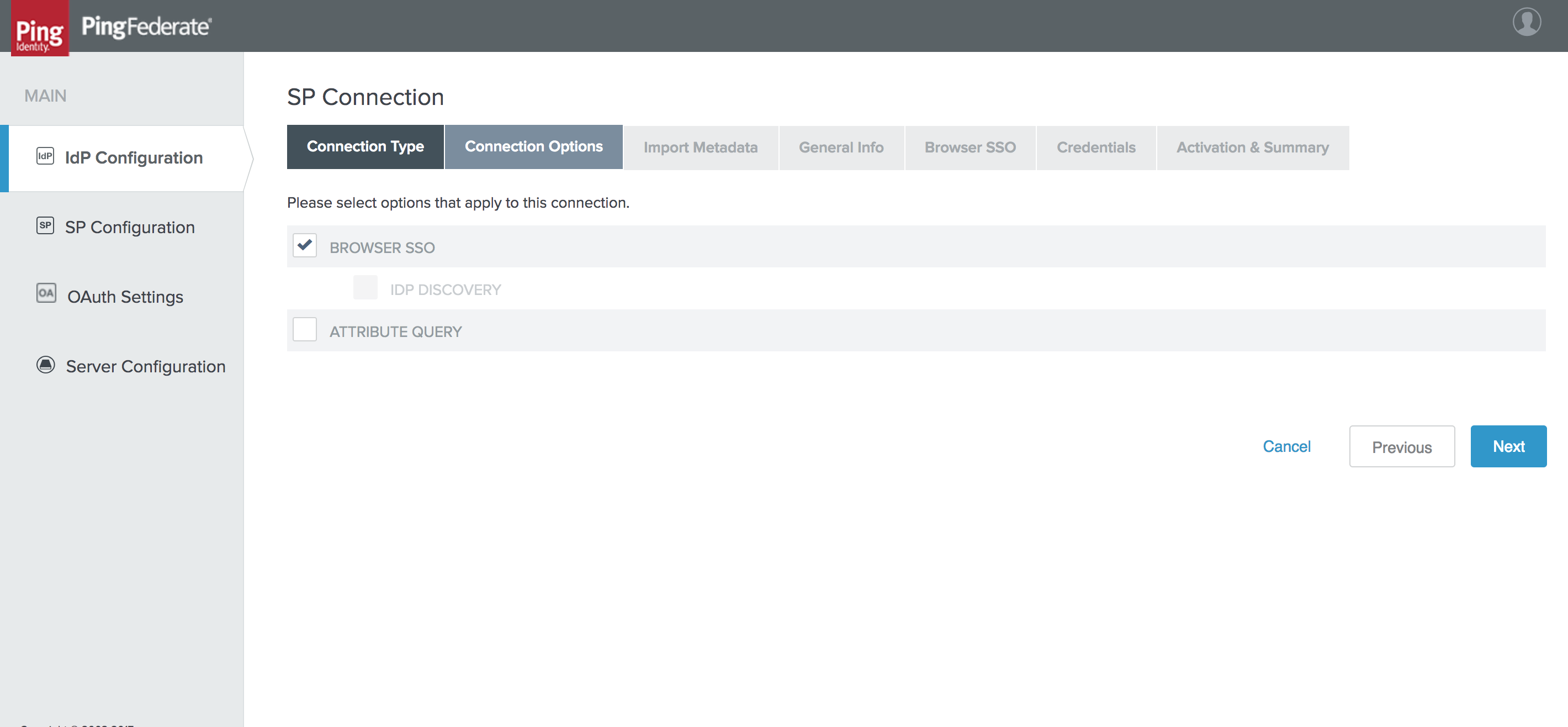

  2. Go to IdP Configuration > SP Connection > Connection Type, and select Browser SSO.

    ping saml step2

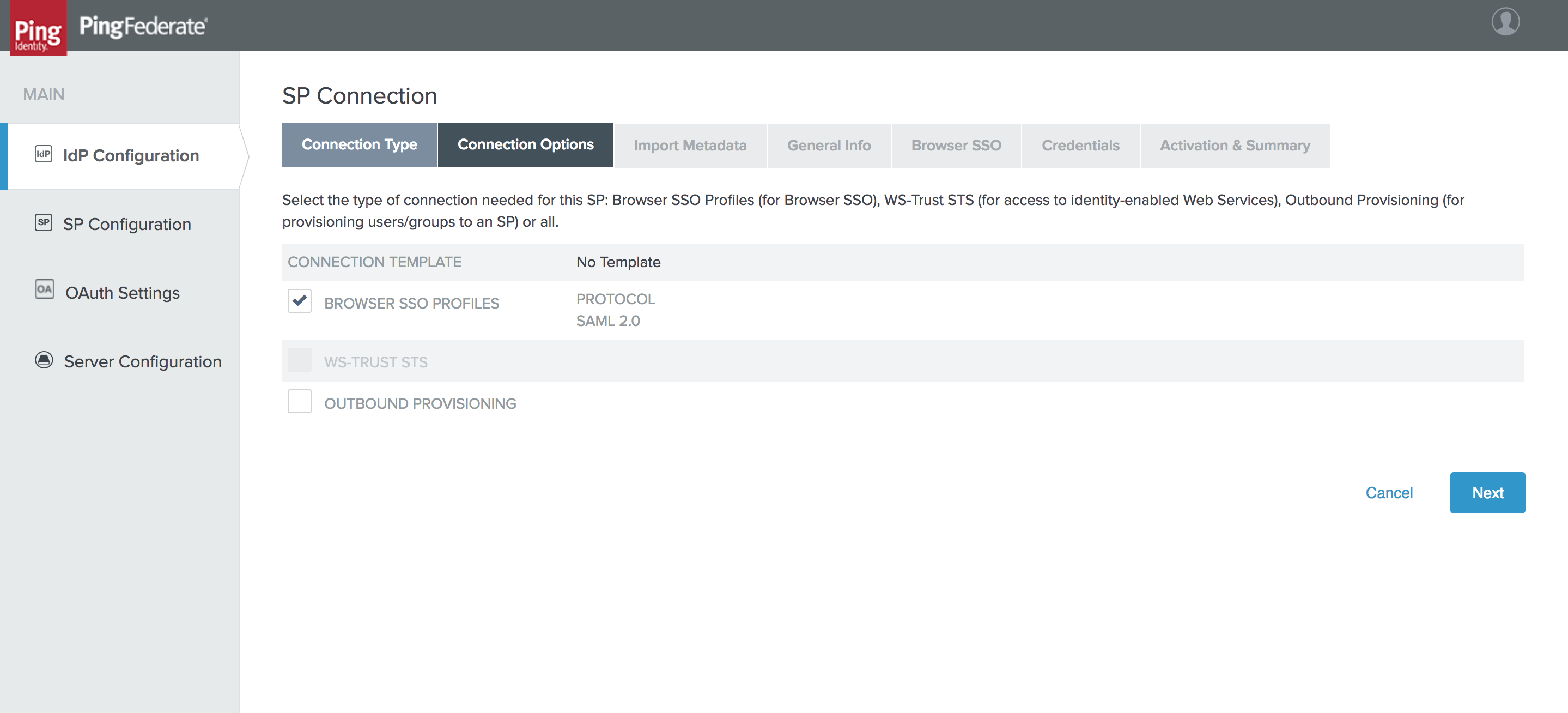

  3. Go to IdP Configuration > SP Connection > Connection Options, and select Browser SSO Profiles SAML 2.0.

    ping saml step3

  4. Skip the Import Metadata tab.

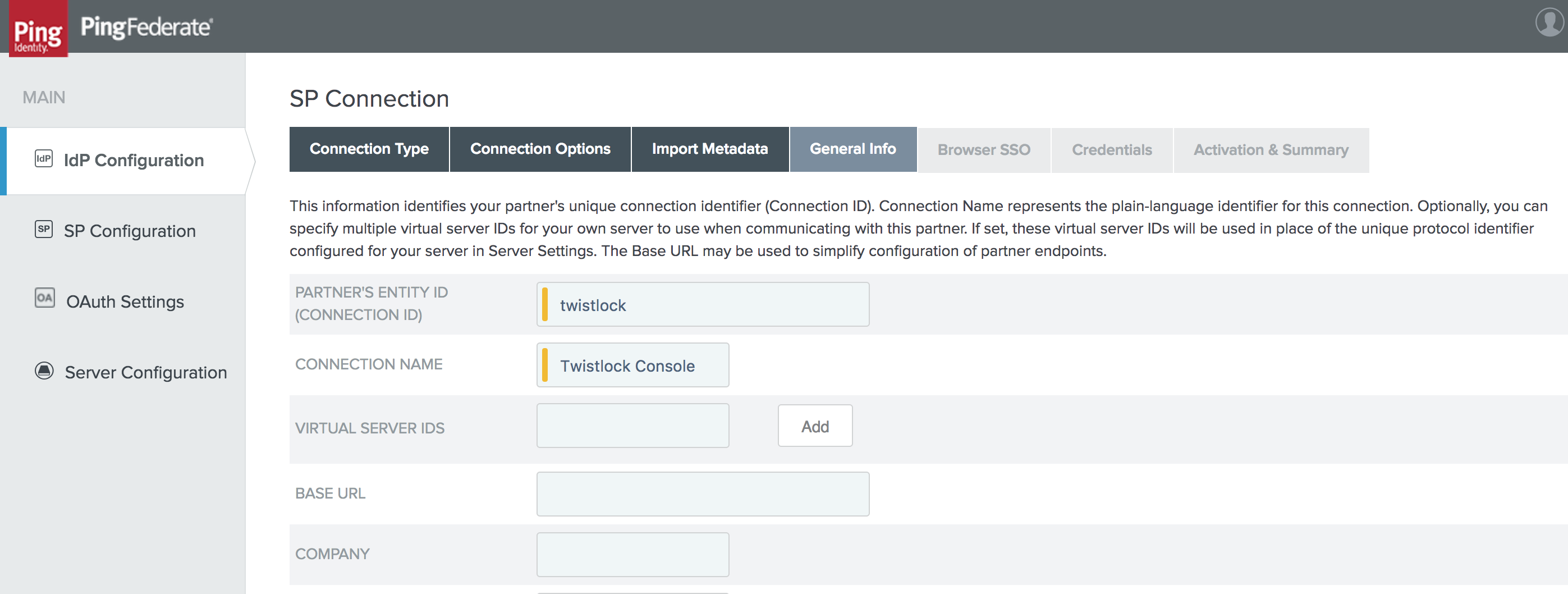

  5. Go to IdP Configuration > SP Connection > General Info.

    1. In Partner’s Entity ID, enter twistlock.

      By default, the Partner’s Entity ID is "twistlock". When configuring the SAML Audience in the Prisma Cloud Console, the default value is "twistlock". If you choose a different value here, be sure to set the same value in your Console.

    2. In Connection Name, enter Prisma Cloud Console.

    3. Click Add.

      ping saml step5

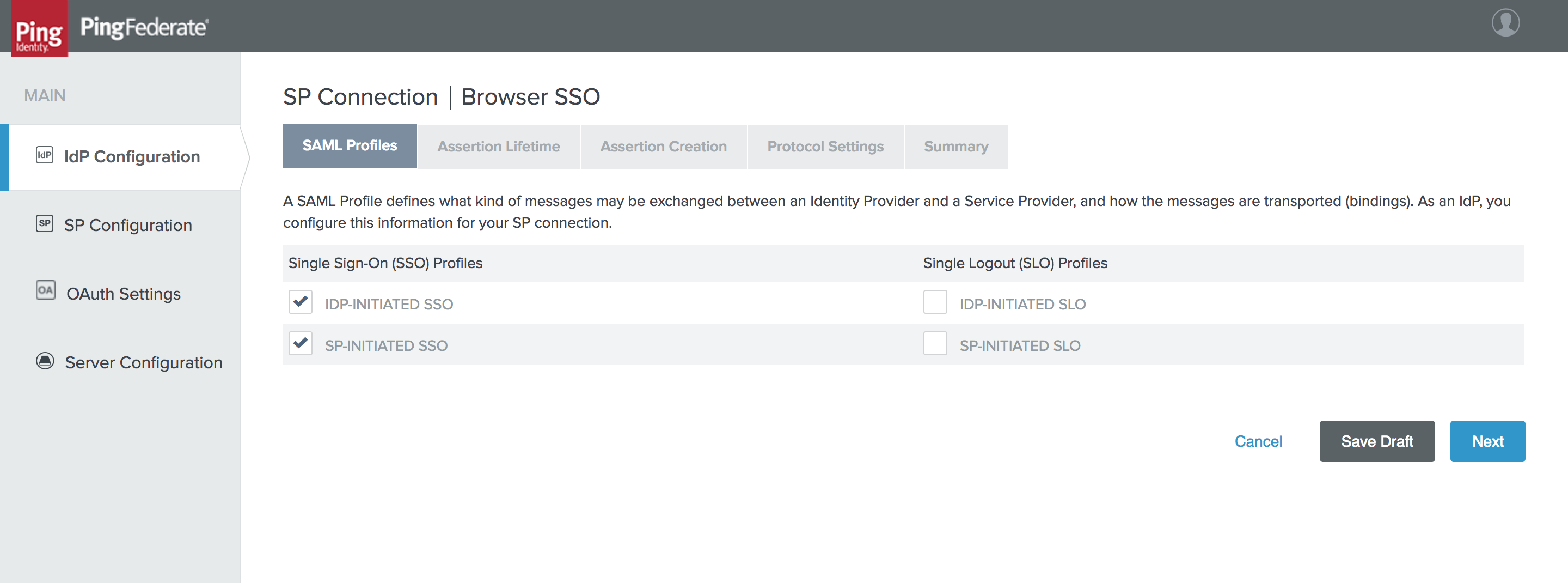

  6. In Browser SSO > SAML Profiles, select both IDP-INITIATED SSO and SP-INITIATED SSO.

    ping saml step6

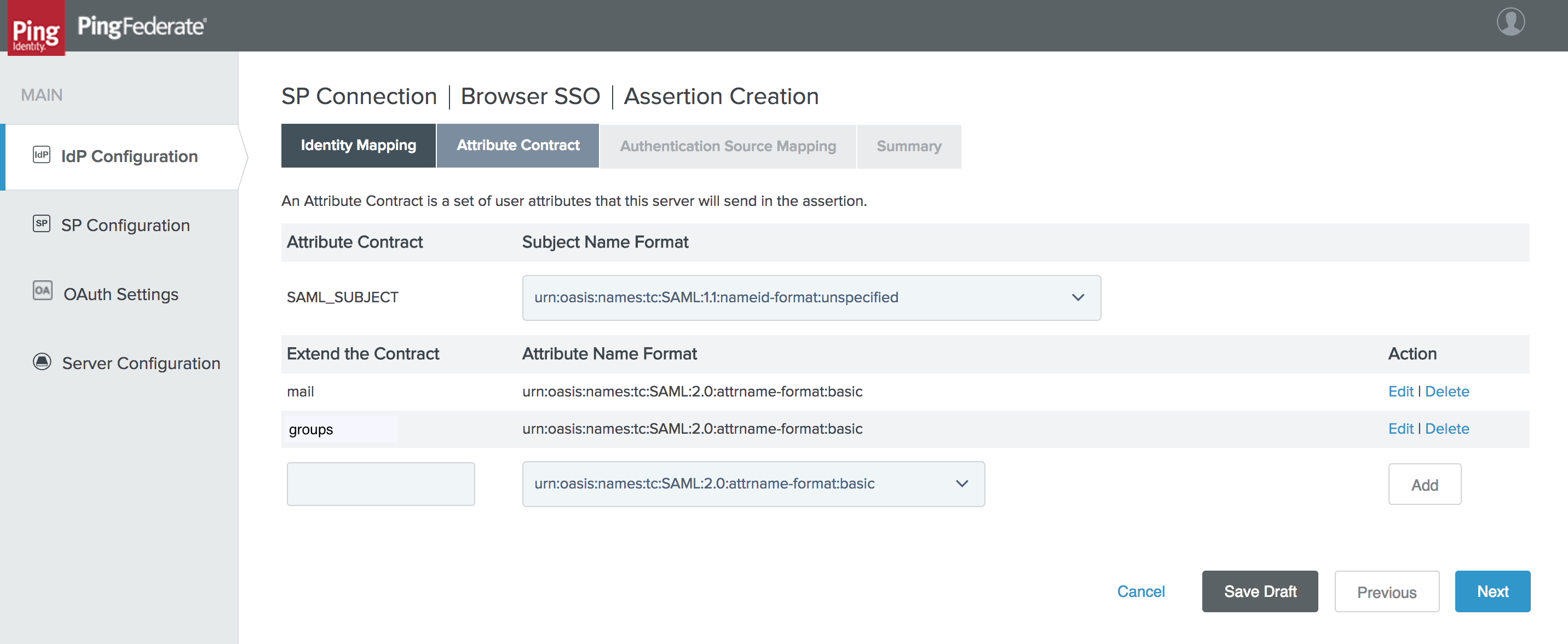

  7. Go to Assertion Creation and set SAML_SUBJECT to SAML 1.1 nameid-format.

    In this example you mapped the user’s email address to the SAML_SUBJECT attribute which matches the user’s Prisma Cloud account. If you are using group-to-Prisma Cloud-role associations, add groups to the list of attributes to be returned in the SAML token.

    ping saml step7

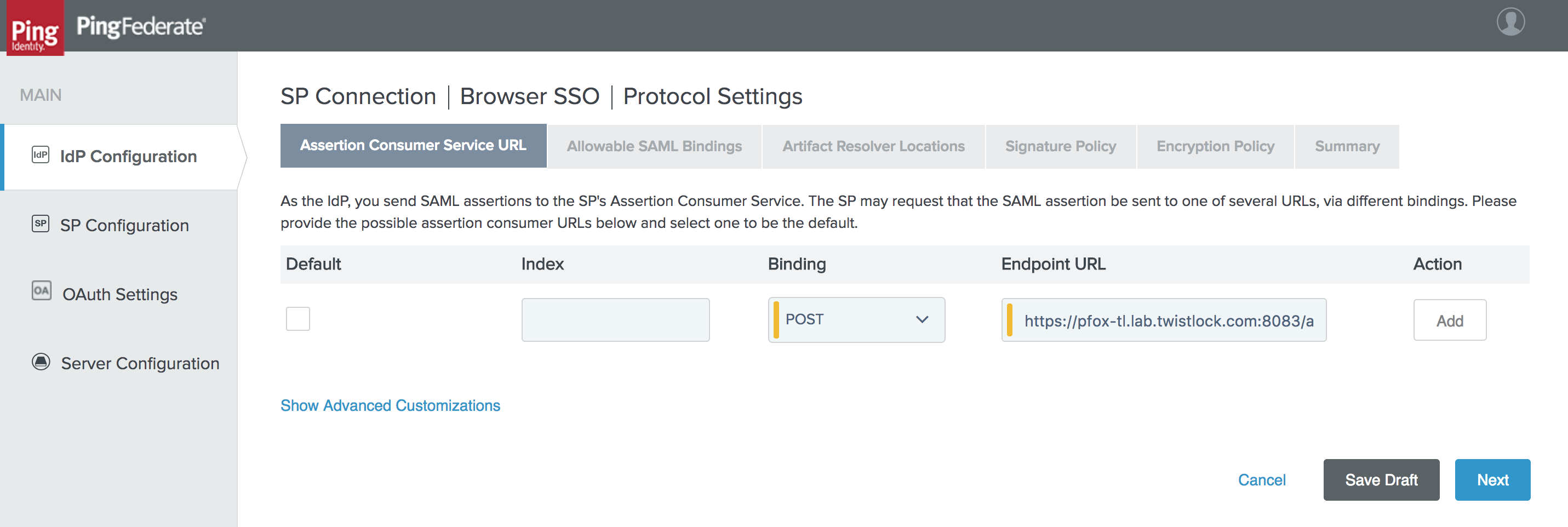

  8. In IdP Configuration > SP Connection > Browser SSO > Protocol Settings > Assertion Consumer Service URL, specify an assertion consumer URL.

    1. Under Binding, select POST.

    2. Under Endpoint URL, enter https://<FQDN_OF_YOUR_TWISTLOCK_CONSOLE>:8083/api/v1/authenticate.

      ping saml step8

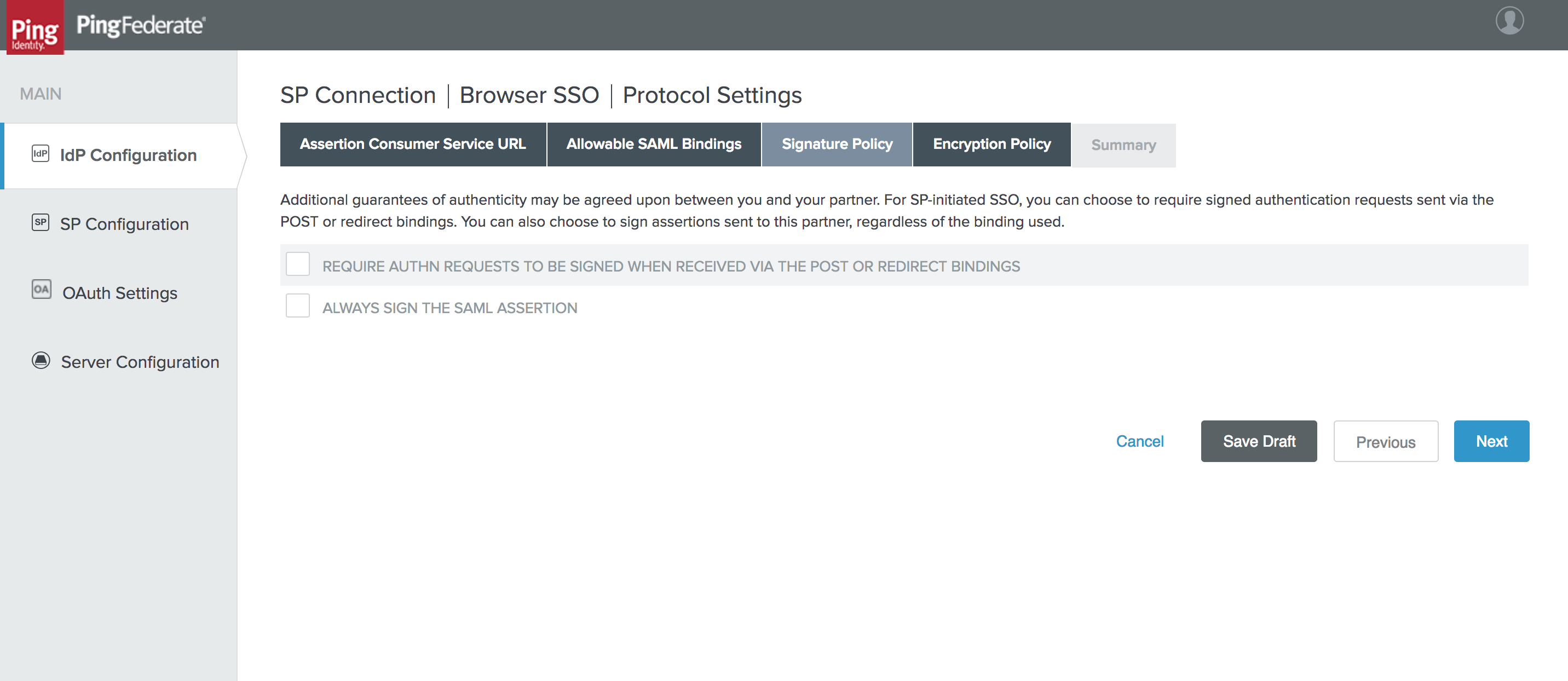

  9. In IdP Configuration > SP Connection > Browser SSO > Protocol Settings > Signature Policy, leave both values unchecked.

    ping saml step9

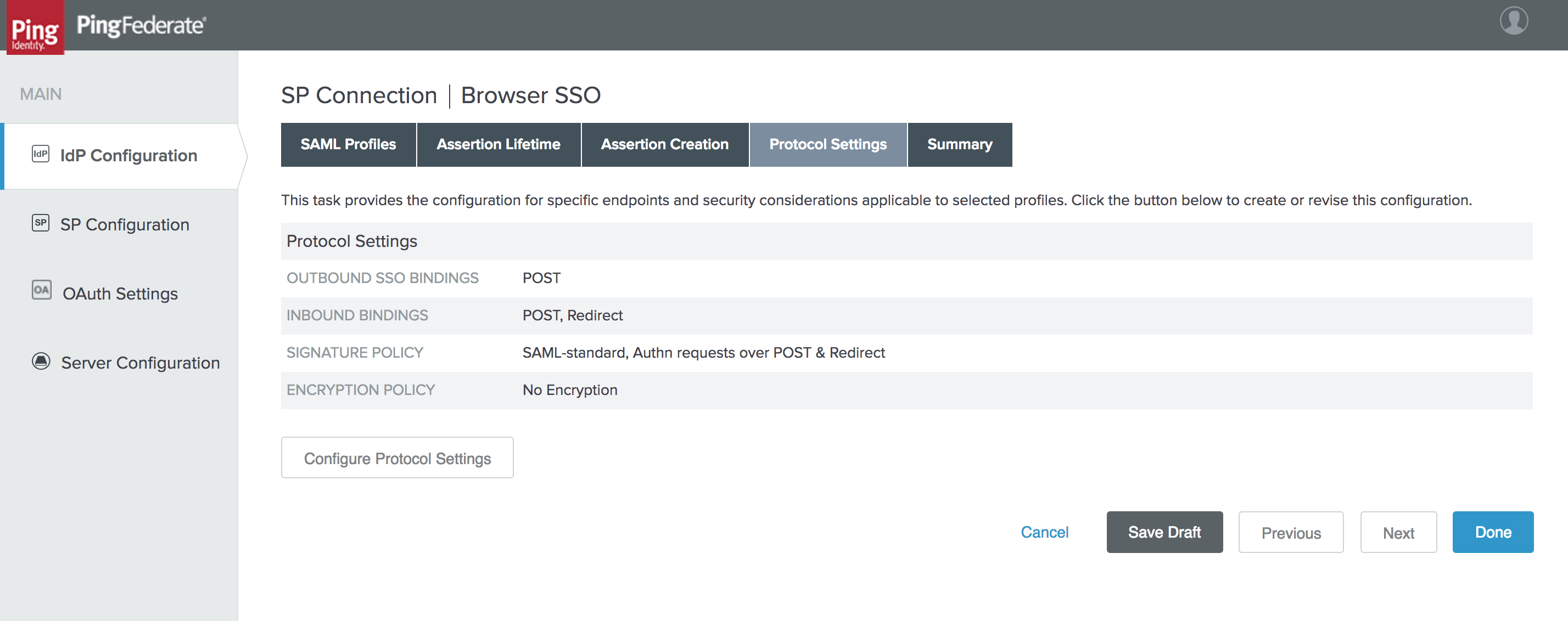

  10. In IdP Configuration > SP Connection > Browser SSO > Protocol Settings, review the protocol settings.

    ping saml step10

  11. Click Done.

  12. Copy the PingFederate SAML token signing X.509 certificate as Base64 in Server Configuration. This certificate will be imported into Prisma Cloud Console.

Configure Prisma Cloud Console

Configure Prisma Cloud Console.

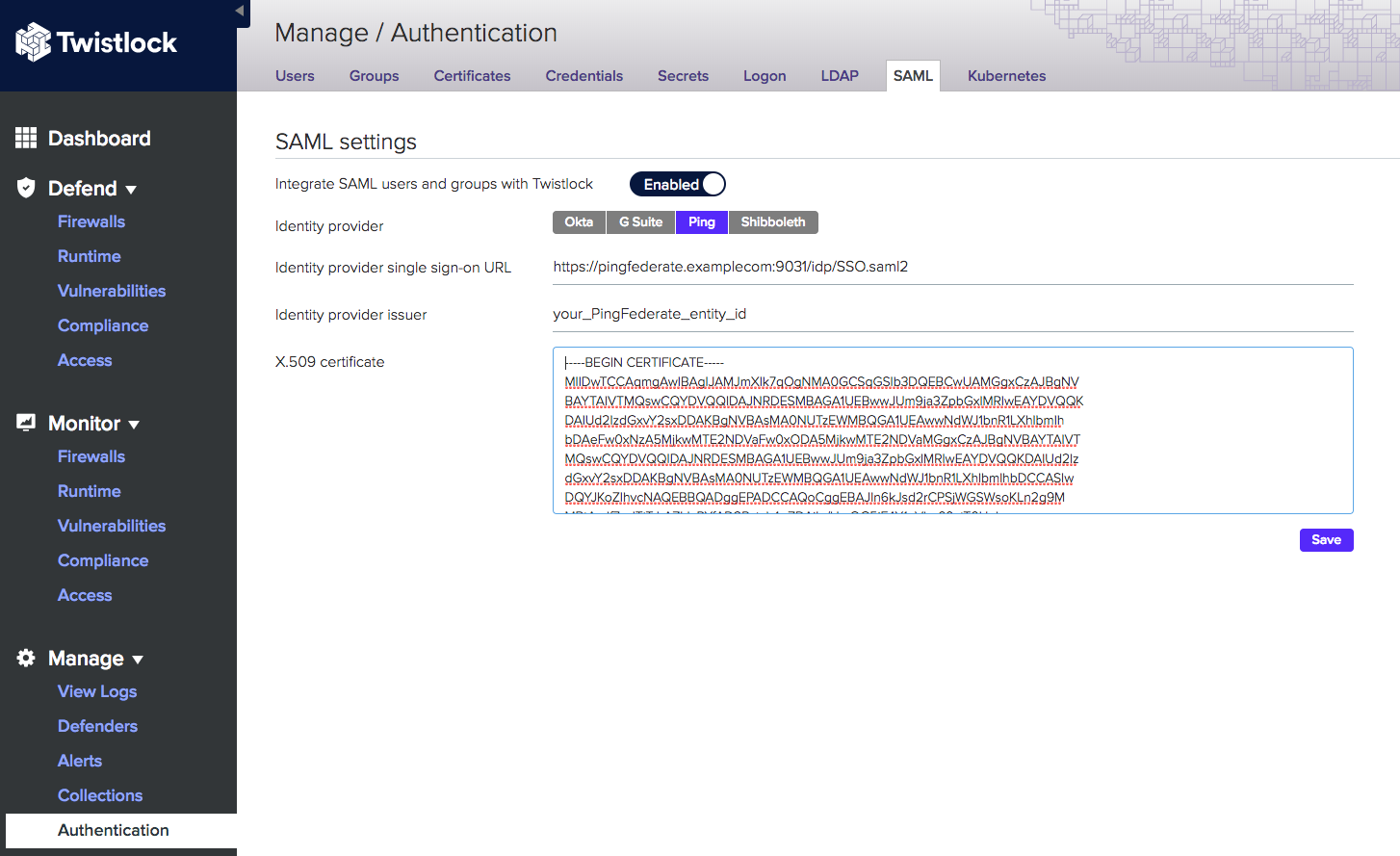

  1. Login to the Prisma Cloud Console as an administrator.

  2. Go to Manage > Authentication > Identity Providers > SAML.

  3. Set Integrate SAML users and groups with Prisma Cloud to Enabled.

  4. Set Identity Provider to Ping.

  5. In Identity provider single sign-on URL, enter your PingFederate IdP endpoint.

  6. In Identity provider issuer, enter your PingFederate Entity ID.

  7. In Audience, enter twistlock (default) or the value you set for Partner’s Entity ID in PingFederate.

    1. In X.509 certificate, paste your PingFederate X.509 Signing Certificate Base64.

      ping saml step11

  8. Click Save.

User account name matching

User account name matching.

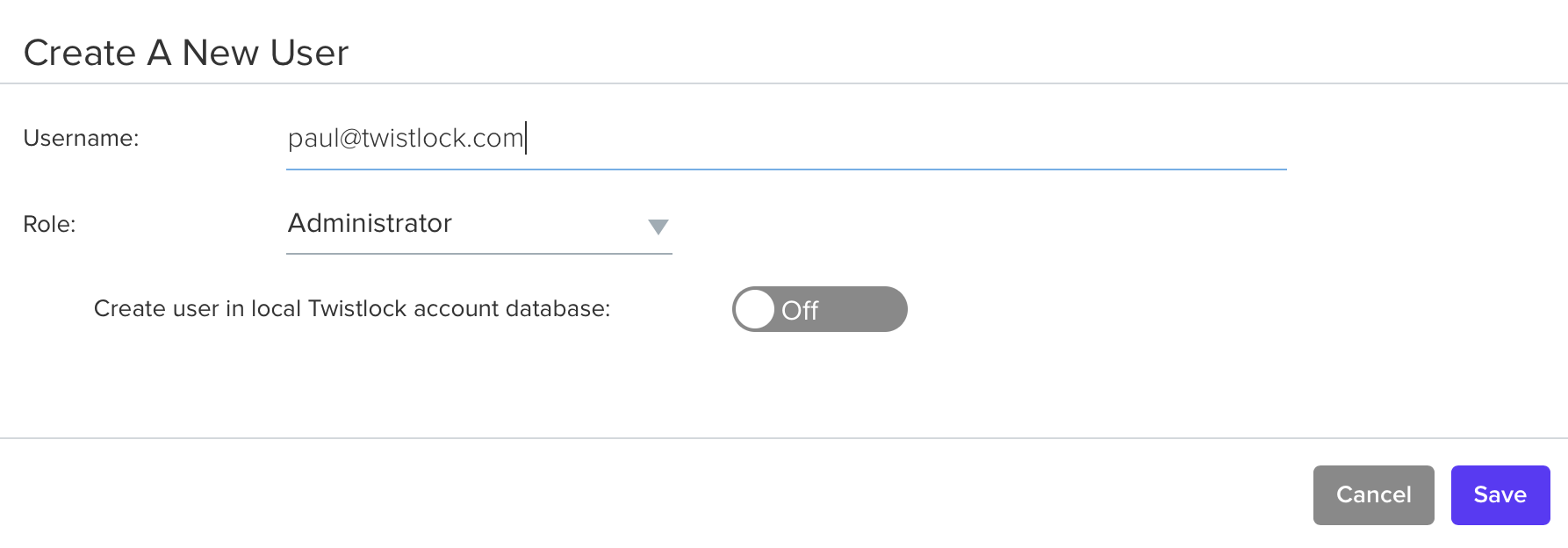

  1. Go to Manage > Authentication > Users.

  2. Click Add user.

  3. Create a new user:

    1. In Username, enter the value returned within the SAML_SUBJECT attribute IdP user’s email address.

    2. In Role, select the appropriate role.

    3. Set Create user in local Prisma Cloud account database to Off.

      ping saml step12

  4. Click Save.

  5. Test login into the Prisma Cloud Console via PingFederate SAML federation.

    Leave your existing session logged onto the Prisma Cloud Console in case you encounter issues. Open a new incognito browser window and go to https://<CONSOLE>:8083.

Group name matching

Group name matching.

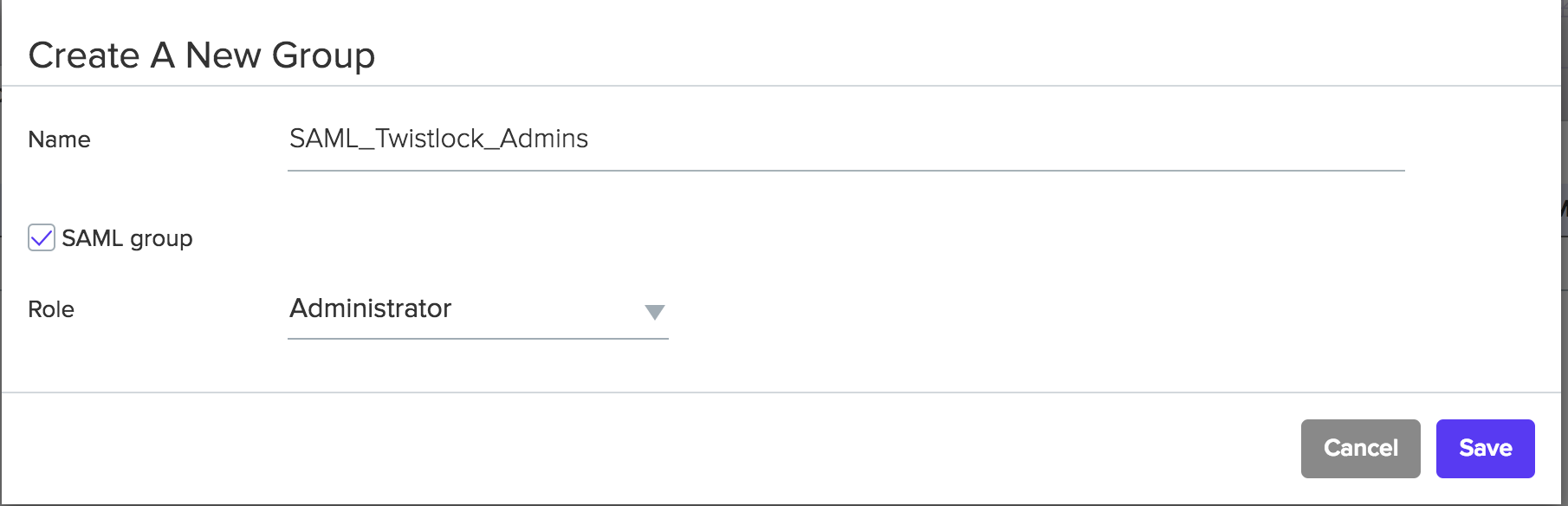

  1. Go to Manage > Authentication > Groups.

  2. Click the +Add Group button.

  3. In the Name field, enter a group name.

    The group name must exactly match the group name in the SAML IDP. Console does not verify if that the value entered matches a group name in the SAML IDP.

  4. Select the SAML group checkbox.

    ping saml step13

  5. Click Save

  6. Test login into the Prisma Cloud Console via PingFederate SAML federation.

    Leave your existing session logged onto the Prisma Cloud Console in case you encounter issues. Open a new incognito browser window and go to https://<CONSOLE>:8083.
