# Deploy in FIPS mode

The Console, Defender and twistcli Compute components can run using FIPS140-2 Level 1 validated cryptographic modules. The Compute GoLang components are statically compiled with the [BoringCrypto module](https://boringssl.googlesource.com/boringssl/+/master/crypto/fipsmodule/FIPS.md), using the built-in mechanism introduced in Go1.19 [GOEXPERIMENT](https://pkg.go.dev/internal/goexperiment).

The cipher suites used are:

* TLS\_ECDHE\_RSA\_WITH\_AES\_128\_GCM\_SHA256
* TLS\_ECDHE\_RSA\_WITH\_AES\_256\_GCM\_SHA384
* TLS\_ECDHE\_ECDSA\_WITH\_AES\_128\_GCM\_SHA256
* TLS\_ECDHE\_ECDSA\_WITH\_AES\_256\_GCM\_SHA384

The following procedures are for [self-hosted](/admin-guide/32/welcome/pcee-vs-pcce.md) deployments only.

1. Download the latest release tar bundle from the Palo Alto Networks [Customer Support Portal](https://support.paloaltonetworks.com/).

   Note that v22.12 or later is certified for FIPS.
2. Untar the release

   ```
   $ tar -xzf prisma_cloud_compute_<VERSION>.tar.gz
   ```
3. Set the FIPS mode for deployment.
   * For Onebox deployments, modify twistlock.cfg and set the FIPS\_ENABLED flag to "true."

     ```
     ##### FIPS configuration #####
      # Forces Console and Defender to use FIPS-compliant cryptography, https://csrc.nist.gov/projects/cryptographic-module-validation-program
      FIPS_ENABLED=true
     ```
   * For Kubernetes deployments, download the Defender YAML file from Console and and set the FIPS\_ENABLED flag to "true."
4. Deploy the Console either via the [Onebox](/admin-guide/32/install/deploy-console/console-on-onebox.md) or [Kubernetes](/admin-guide/32/install/deploy-console/console-on-kubernetes.md) deployment methods.
5. To confirm the Console is running in FIPS mode, login to the Console and go to Manage > Logs > Console and search for "FIPS." *FIPSEnabled: true* is confirmation that the Console has started in FIPS mode.

   ```
   manager.go:73 Starting Console manager: ConsoleCN: STIG.lomsgaupfzzurnlkzzmxivmymh.cx.internal.cloudapp.net, ConsoleSAN: [IP:127.0.0.1 IP:10.0.1.4 IP:172.17.0.1], IsProd: true, DataRecoveryEnabled: true, DefenderPort: 8084, MgmtPortHTTPS: 8083, Version: 22.12.415, FIPSEnabled: true
   ```
6. To confirm that the Defender is running in FIPS mode, login to the Console and go to Manage > Defenders > Defenders: Deployed in the Actions column of the Defender(s) click Logs and search for "FIPS."

   ```
   defender.go:778 FIPS mode enabled true
   ```
7. When using the *twistcli* command line tool use the **FIPS\_ENABLED=true** variable to enforce FIPS validated TLS communication to the Console, for example:

   ```
   $ FIPS_ENABLED=true ./twistcli images scan --address https://127.0.0.1:8083 0c413668ee0d
   ```

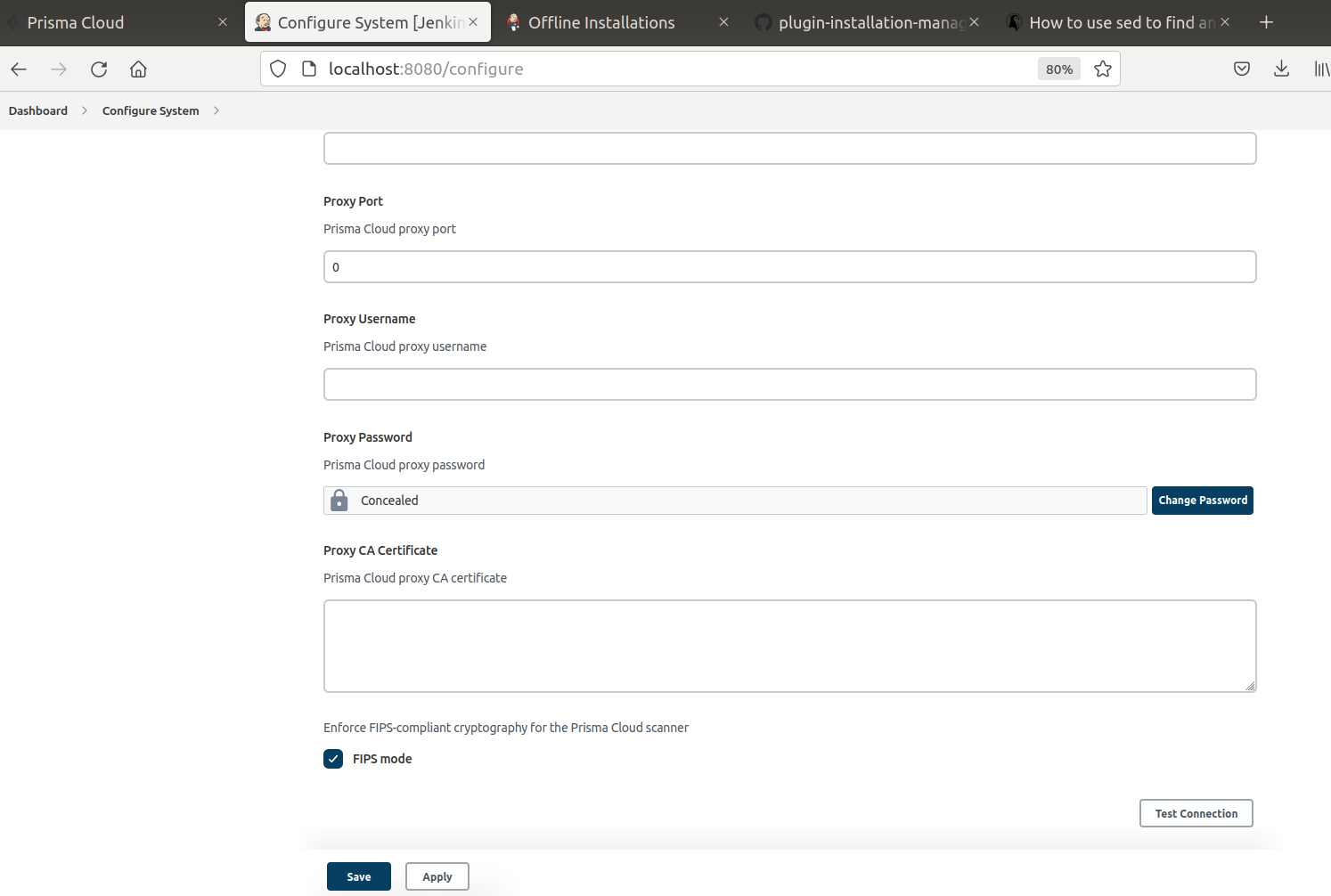

8. The Jenkins plug-in communication to the Console can enforce FIPS compliant TLS traffic, enable **FIPS mode** in the Prisma Cloud Jenkins plug-in’s configuration.

   <figure><img src="/files/MXDqpfWMqkCBh1FqHKd0" alt="jenkins plug in fips"><figcaption></figcaption></figure>


---
