Okta (SAML 2.0)

1. Users browse to Prisma Cloud Console.
2. Their browsers are redirected to the Okta SAML 2.0 endpoint.
3. They enter their credentials to authenticate. Multi-factor authentication can be enforced at this step.
4. A SAML token is returned to Prisma Cloud Console.
5. Prisma Cloud Console validates the SAML token’s signature and associates the user to their Prisma Cloud account via user identity mapping or group membership.

Setting up Prisma Cloud in Okta

1. Log into the Okta admin dashboard.
2. On the right, click Add Applications.

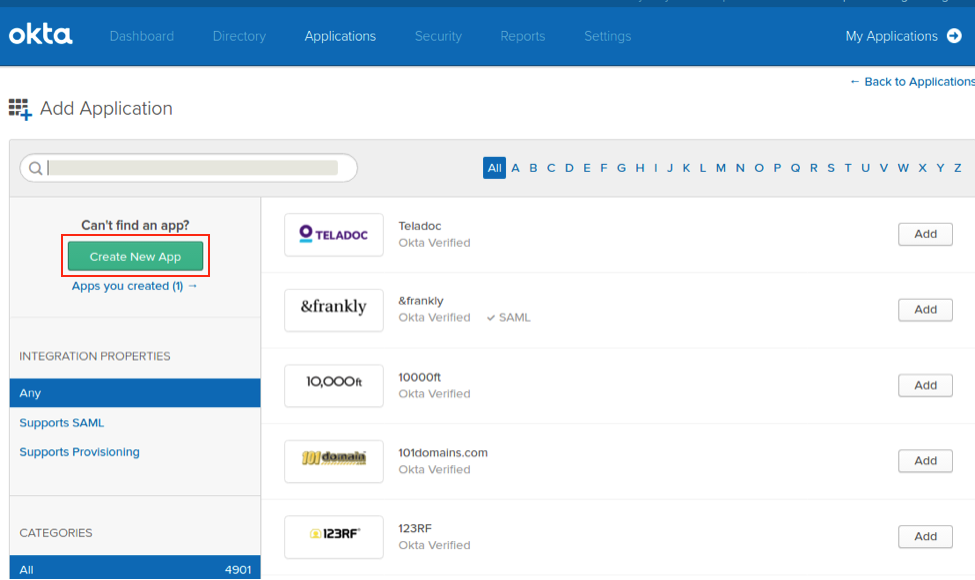

3. On the left, click Create new app.

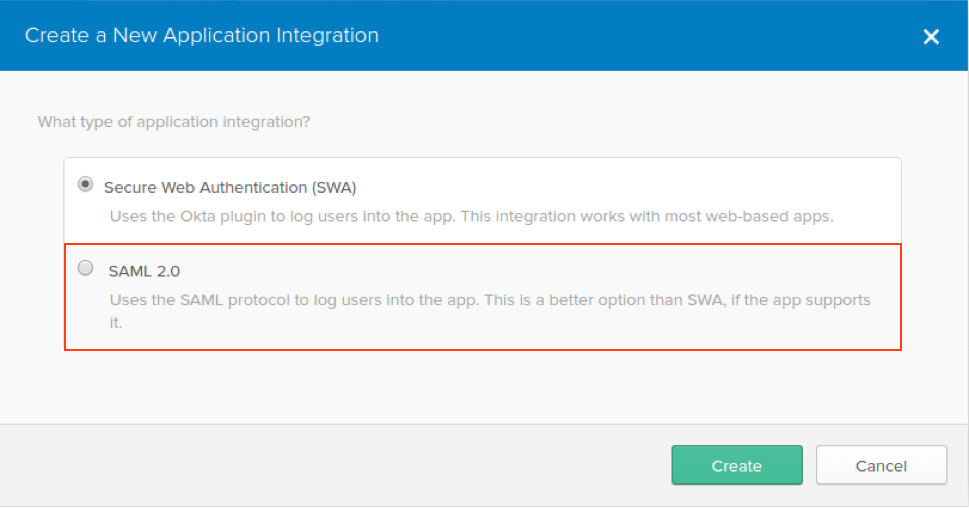

4. Select SAML 2.0, and then click Create.

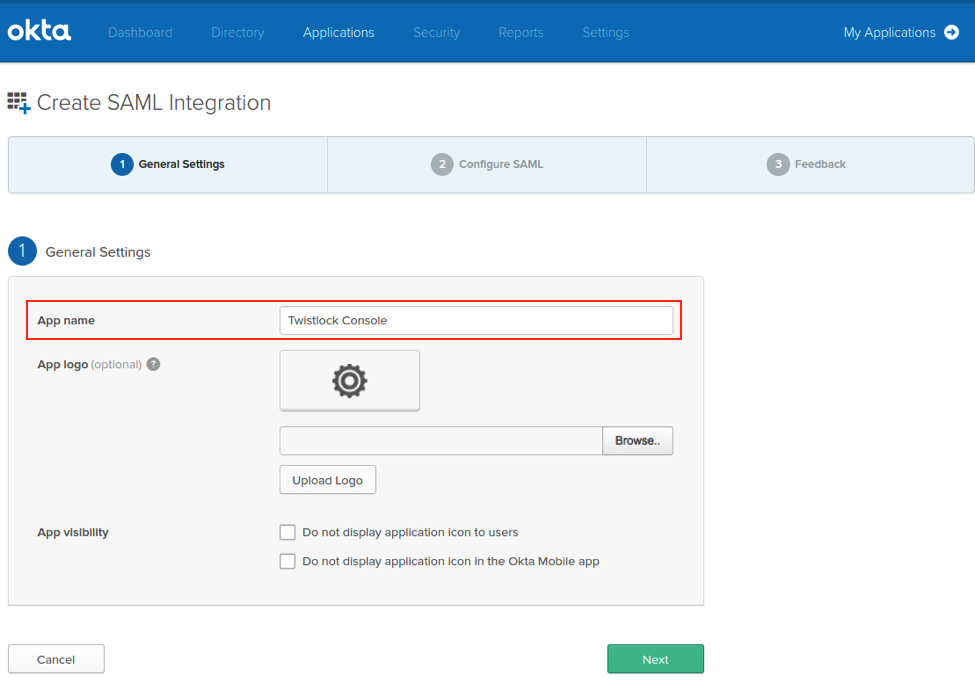

5. In the App name field, enter Prisma Cloud Console, then click Next.

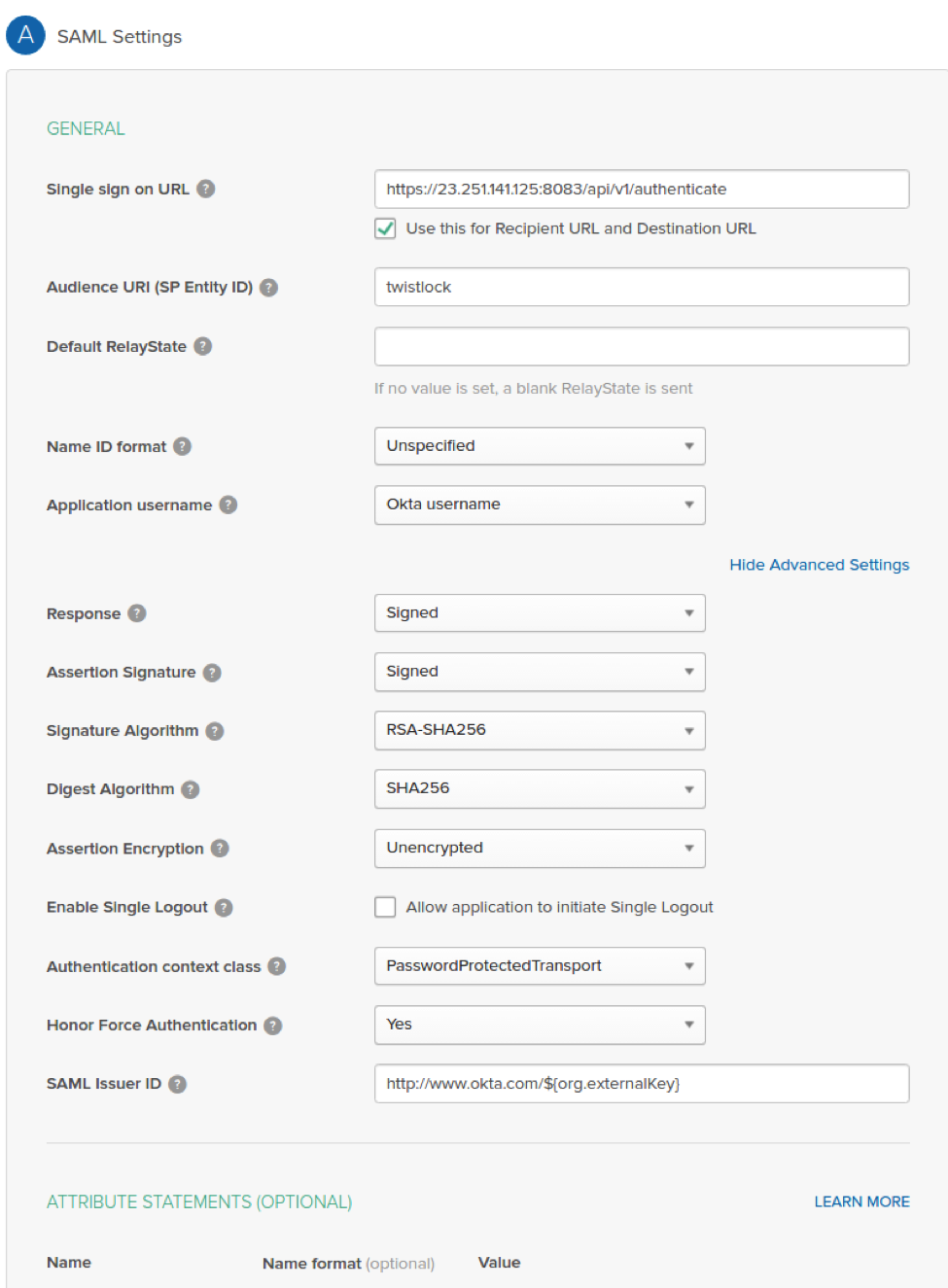

6. In the SAML Settings dialog:

   1. In the Single Sign On URL field, enter https://<CONSOLE_ADDR>:8083/api/v1/authenticate.

      Note that if you have changed the default port you use for the HTTPS listener, you’d need to adjust the URL here accordingly. Additionally, this URL must be visible from the Okta environment, so if you’re in a virtual network or behind a load balancer, it must be configured to forward traffic to this port and it’s address is what should be used here.
   2. Select Use this for Recipient URL and Destination URL.
   3. In the field for Audience Restriction, enter twistlock (all lowercase).
   4. Expand Advanced Settings.
   5. Verify that Response is set to Signed.
   6. Verify that Assertion Signature is set to Signed.


7. (Optional) Add a group.

   Setting up groups is optional. If you set up group attribute statements, then permission to access Prisma Cloud is assessed at the group level. If you don’t set up group attribute statements, them permission to access Prisma Cloud is assessed at the user level.

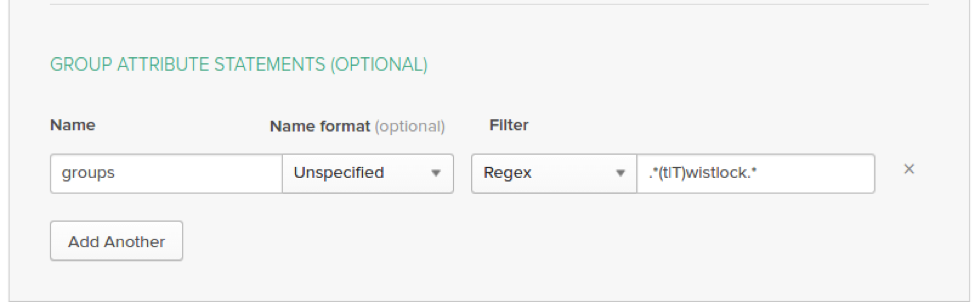

   1. Scroll down to the GROUP ATTRIBUTE STATEMENTS section.
   2. In the Name field, enter groups.
   3. In filter drop down menu, select Regex and enter a regular expression that captures all the groups defined in Okta that you want to use for access control rules in Prisma Cloud.

      In this example, the regular expression .*(t|T)wistlock.* is used to include all groups prepended with either Prisma Cloud or twistlock. You should enter your own desired group name here. If you have just one group, such as YourGroup, then just enter YourGroup. Regular expressions are not required. If you have multiple groups, you can use a regular expressions, such as (group1|group2|group3).


8. Click Next, and then click Finish.

   You are directed to a summary page for your new app.


9. Click on the People tab, and add users to the Prisma Cloud app.

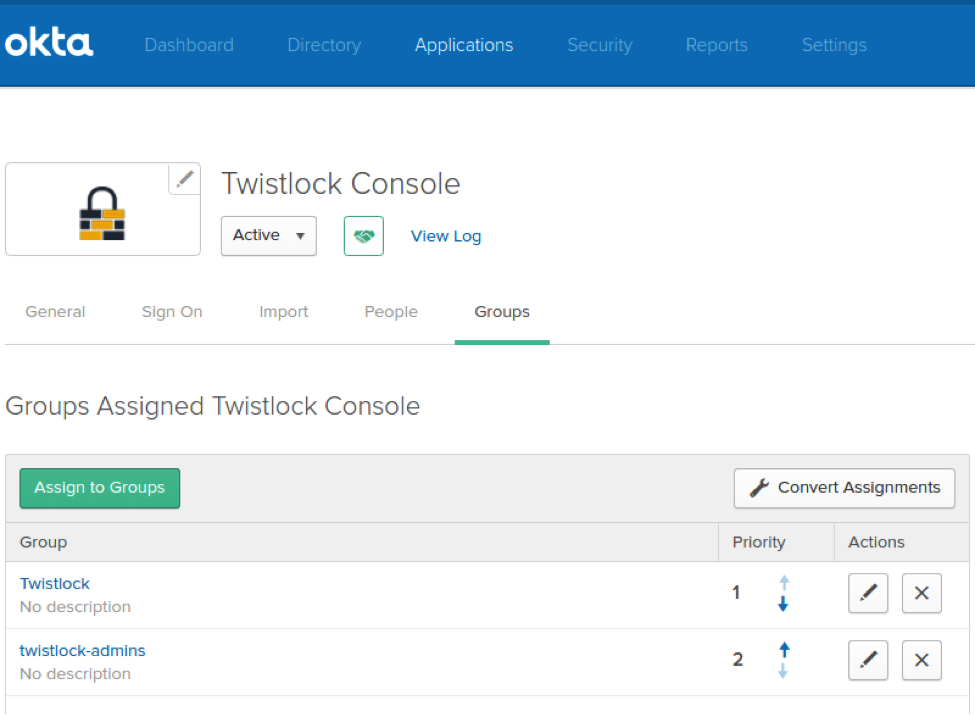

10. Click on the Groups tab, and add groups to the Prisma Cloud app.

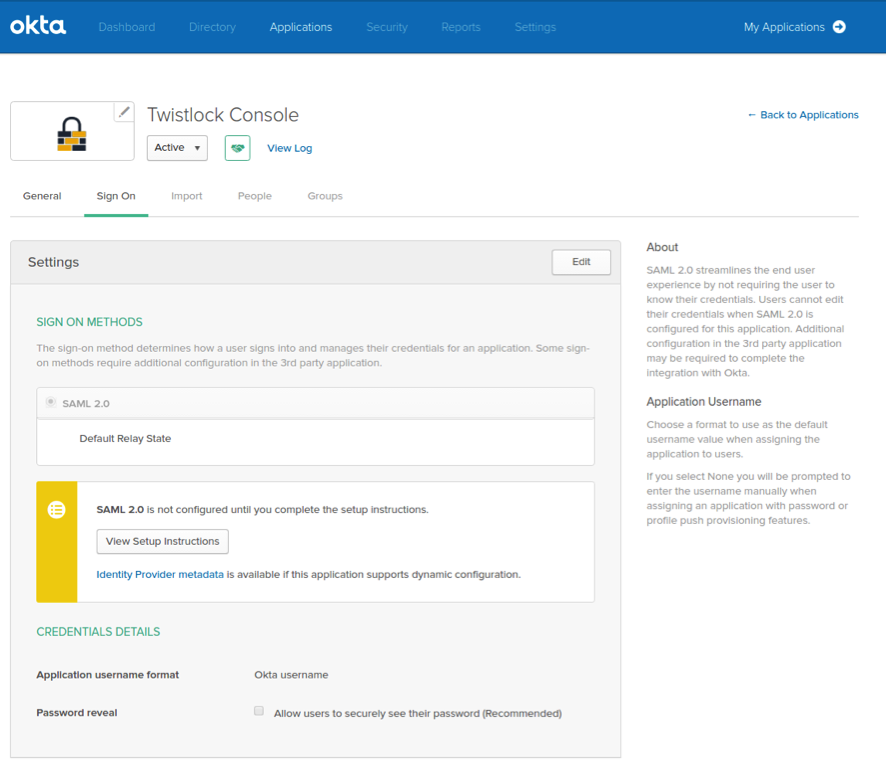

11. Click on the Sign On tab and click View setup instructions.

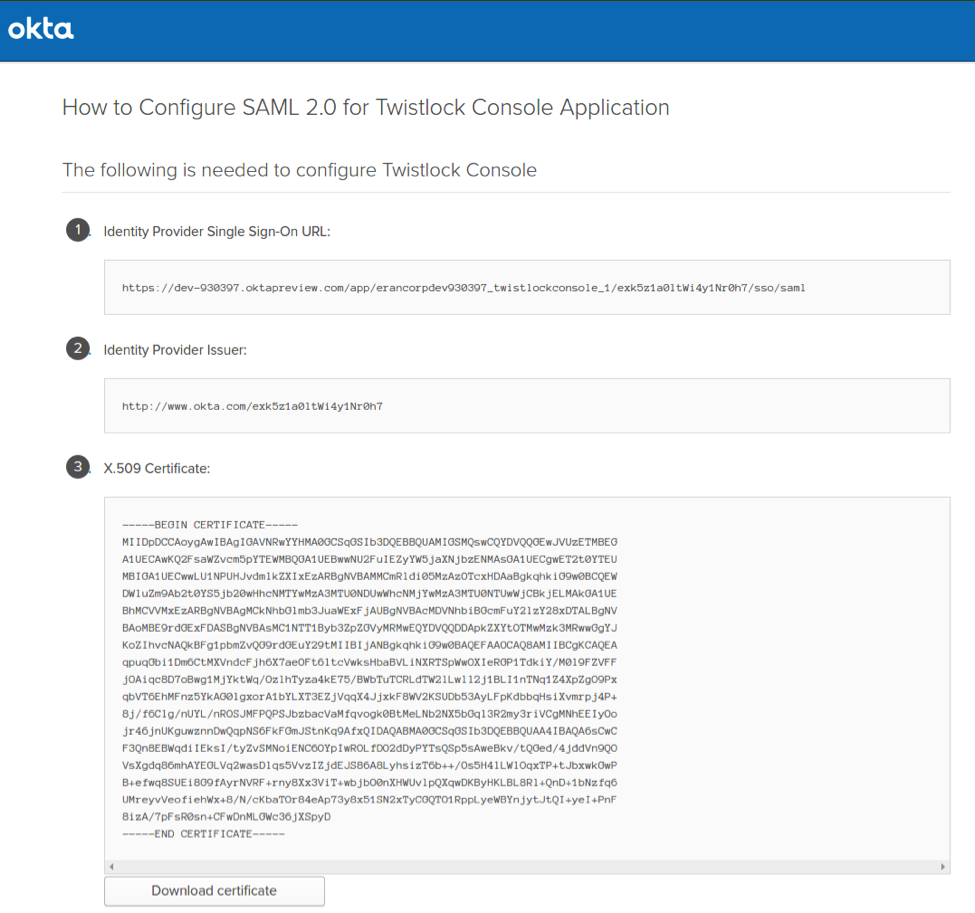

    The following values are used to configure Prisma Cloud Console, so copy them and set them aside.

    • Identity Provider Single Sign-On URL
    • Identity Provider Issuer
    • X.509 Certificate



Configuring Console

1. Open Console, and login as admin.
2. Go to Manage > Authentication > Identity Providers > SAML.
3. Set Integrate SAML users and groups with Prisma Cloud to Enabled.
4. Set Identity provider to Okta.
5. Copy the following values from Okta and paste them into their corresponding fields in Console:

   • Identity Provider Single Sign-On URL
   • Identity Provider Issuer
   • X.509 Certificate
6. In Audience, enter twistlock.
7. Click Save.

Granting access by group

1. Open Console.
2. Define a SAML group.

   1. Go to Manage > Authentication > Groups.
   2. Click Add group.
   3. In the Name field, enter a group name.

      The group name must exactly match the group name in the SAML IdP. Console does not verify if that the value entered matches a group name in the SAML IdP.
   4. Select the SAML group checkbox.
   5. Select a role.
   6. Select a project(s) - Optional.
   7. Click Save.

Granting access by user

1. Open Console.
2. Define a SAML user.

   1. Go to Manage > Authentication > Users.
   2. Click Add user.
   3. In the Username field, enter a user name.

      The username must exactly match the username in the SAML IdP. Console does not verify if that the value entered matches a user name in the SAML IdP.
   4. Select SAML as the Auth method
   5. Select a role.
   6. (Optional) Select a project(s).
   7. Click Save.
