DISA STIG compliance checks

Prisma Cloud supports the Docker Enterprise 2.x Linux/Unix STIG - Ver 2, Rel 1 and the Kubernetes STIG - Ver 1, Rel 2 compliance checks. Defense Information Systems Agency Security Technical Implementation Guides (DISA STIGs) contain technical guidance to lock down systems that might otherwise be vulnerable to attack. These STIGs help ensure your environments are properly secured, based on Department of Defense guidance. Prisma Cloud will continue to incorporate DISA STIG guidance as existing STIGs are updated and new STIGs are published.

For an overview of the STIG, see here.

To download the STIGs, see here.

Checks

Prisma Cloud Compute has a compliance template "DISA STIG" for images, containers and hosts. This compliance template maps individual STIG rules to existing compliance checks within Compute. In some cases, we’ve implemented checks specifically to support the STIGs. When configuring your compliance policy, simply select the DISA STIG template to enable ("Alert") all relevant checks.

CAT I

CAT I is a category code for any vulnerability, which when exploited, will directly and immediately result in loss of Confidentiality, Availability, or Integrity. These risks are the most severe.

The following table lists the CAT I checks implemented in Prisma Cloud, and how they map to existing Prisma Cloud checks. All CAT I checks, except DKER-EE-001070, map to CIS Docker Benchmark checks. A separate check has been implemented for DKER-EE-001070 to support the Docker Enterprise STIG.

STIG ID

Prisma Cloud ID

Description

DKER-EE-001070

N/A

FIPS mode must be enabled on all Docker Engine - Enterprise nodes.

DKER-EE-002000

Docker Enterprise hosts network namespace must not be shared.

DKER-EE-002030

512

All Docker Enterprise containers root filesystem must be mounted as read only.

DKER-EE-002040

517

Docker Enterprise host devices must not be directly exposed to containers.

DKER-EE-002070

521

The Docker Enterprise default seccomp profile must not be disabled.

DKER-EE-002080

224

Docker Enterprise exec commands must not be used with privileged option.

DKER-EE-002110

525

All Docker Enterprise containers must be restricted from acquiring additional privileges.

DKER-EE-002120

530

The Docker Enterprise hosts user namespace must not be shared.

DKER-EE-002130

531

The Docker Enterprise socket must not be mounted inside any containers.

DKER-EE-002150

Docker Enterprise privileged ports must not be mapped within containers.

DKER-EE-005170

Docker Enterprise docker.service file ownership must be set to root:root.

DKER-EE-005190

Docker Enterprise docker.socket file ownership must be set to root:root.

DKER-EE-005210

Docker Enterprise /etc/docker directory ownership must be set to root:root.

DKER-EE-005230

Docker Enterprise registry certificate file ownership must be set to root:root.

DKER-EE-005250

Docker TLS certificate authority (CA) certificate file ownership must be set to root:root

DKER-EE-005270

311

Docker server certificate file ownership must be set to root:root

DKER-EE-005300

314

Docker server certificate key file permissions must be set to 400

DKER-EE-005310

315

Docker Enterprise socket file ownership must be set to root:docker.

DKER-EE-005320

316

Docker Enterprise socket file permissions must be set to 660 or more restrictive.

DKER-EE-005330

317

Docker Enterprise daemon.json file ownership must be set to root:root.

DKER-EE-005340

318

Docker Enterprise daemon.json file permissions must be set to 644 or more restrictive.

DKER-EE-005350

319

Docker Enterprise /etc/default/docker file ownership must be set to root:root.

DKER-EE-005360

320

Docker Enterprise /etc/default/docker file permissions must be set to 644 or more restrictive.

CNTR-K8-000220

8134

The Kubernetes Controller Manager must create unique service accounts for each work payload.

CNTR-K8-000320

8117

The Kubernetes API server must have the insecure port flag disabled.

CNTR-K8-000330

8215

The Kubernetes Kubelet must have the read-only port flag disabled.

CNTR-K8-000340

8116

The Kubernetes API server must have the insecure bind address not set.

CNTR-K8-000360

8112

The Kubernetes API server must have anonymous authentication disabled.

CNTR-K8-000370

8212

The Kubernetes Kubelet must have anonymous authentication disabled.

CNTR-K8-000380

8213

The Kubernetes kubelet must enable explicit authorization.

CNTR-K8-001160

597

Secrets in Kubernetes must not be stored as environment variables.

CNTR-K8-001620

8217

Kubernetes Kubelet must enable kernel protection.

CNTR-K8-001990

81120

Kubernetes must prevent non-privileged users from executing privileged functions to include disabling, circumventing, or altering implemented security safeguards/countermeasures or the installation of patches and updates.

CNTR-K8-002010

81125

Kubernetes must have a pod security policy set.

CNTR-K8-002620

8113

Kubernetes API Server must disable basic authentication to protect information in transit.

CAT II

CAT II is a category code for any vulnerability, which when exploited, has a potential to result in loss of Confidentiality, Availability, or Integrity.

The following table lists the CAT 1 checks implemented in Prisma Cloud, and how they map to existing checks. Some CAT 1 checks don’t map to any existing checks, and have been implemented specifically for this DISA STIG.

STIG ID

Prisma Cloud ID

Description

DKER-EE-001050

TCP socket binding for all Docker Engine - Enterprise nodes in a Universal Control Plane (UCP) cluster must be disabled.

DKER-EE-001240

515

The Docker Enterprise hosts process namespace must not be shared.

DKER-EE-001250

516

The Docker Enterprise hosts IPC namespace must not be shared.

DKER-EE-001800

The insecure registry capability in the Docker Engine - Enterprise component of Docker Enterprise must be disabled.

DKER-EE-001810

On Linux, a non-AUFS storage driver in the Docker Engine - Enterprise component of Docker Enterprise must be used.

DKER-EE-001830

218

The userland proxy capability in the Docker Engine - Enterprise component of Docker Enterprise must be disabled.

DKER-EE-001840

221

Experimental features in the Docker Engine - Enterprise component of Docker Enterprise must be disabled.

DKER-EE-001930

An appropriate AppArmor profile must be enabled on Ubuntu systems for Docker Enterprise.

DKER-EE-001940

SELinux security options must be set on Red Hat or CentOS systems for Docker Enterprise.

DKER-EE-001950

Linux Kernel capabilities must be restricted within containers as defined in the System Security Plan (SSP) for Docker Enterprise.

DKER-EE-001960

Privileged Linux containers must not be used for Docker Enterprise.

DKER-EE-001970

SSH must not run within Linux containers for Docker Enterprise.

DKER-EE-001990

Only required ports must be open on the containers in Docker Enterprise.

DKER-EE-002010

510

Memory usage for all containers must be limited in Docker Enterprise.

DKER-EE-002050

519

Mount propagation mode must not set to shared in Docker Enterprise.

DKER-EE-002060

520

The Docker Enterprise hosts UTS namespace must not be shared.

DKER-EE-002100

524

cgroup usage must be confirmed in Docker Enterprise.

DKER-EE-002160

513

Docker Enterprise incoming container traffic must be bound to a specific host interface.

DKER-EE-002400

223

Docker Enterprise Swarm manager must be run in auto-lock mode.

DKER-EE-002770

406

Docker Enterprise container health must be checked at runtime.

DKER-EE-002780

528

PIDs cgroup limits must be used in Docker Enterprise.

DKER-EE-003200

Docker Enterprise images must be built with the USER instruction to prevent containers from running as root.

DKER-EE-004030

514

The on-failure container restart policy must be is set to 5 in Docker Enterprise.

DKER-EE-004040

518

The Docker Enterprise default ulimit must not be overwritten at runtime unless approved in the System Security Plan (SSP).

DKER-EE-005180

Docker Enterprise docker.service file permissions must be set to 644 or more restrictive.

DKER-EE-005200

Docker Enterprise docker.socket file permissions must be set to 644 or more restrictive.

DKER-EE-005220

Docker Enterprise /etc/docker directory permissions must be set to 755 or more restrictive.

DKER-EE-005240

Docker Enterprise registry certificate file permissions must be set to 444 or more restrictive.

DKER-EE-005260

310

Docker TLS certificate authority (CA) certificate file permissions must be set to 444 or more restrictive

DKER-EE-005280

312

Docker server certificate file permissions must be set to 444 or more restrictive

DKER-EE-005290

313

Docker server certificate key file ownership must be set to root:root

DKER-EE-006270

217

Docker Enterprise Swarm services must be bound to a specific host interface.

CNTR-K8-000180

8153

The Kubernetes etcd must use TLS to protect the confidentiality of sensitive data during electronic dissemination (--auto-tls argument is not set to true).

CNTR-K8-000190

8156

The Kubernetes etcd must use TLS to protect the confidentiality of sensitive data during electronic dissemination. (--peer-auto-tls argument is not set to true).

CNTR-K8-000270

81141 & 81132

The Kubernetes API Server must enable Node,RBAC as the authorization mode.

CNTR-K8-000300

8122

The Kubernetes Scheduler must have secure binding.

CNTR-K8-000350

8118

The Kubernetes API server must have the secure port set.

CNTR-K8-000850

82110

Kubernetes Kubelet must deny hostname override.

CNTR-K8-000860

81418 & 8142 & 81424 & 81422

The manifest files contain the runtime configuration of the API server, proxy, scheduler, controller, and etcd. If an attacker can gain access to these files, changes can be made to open vulnerabilities and bypass user authorizations inherit within Kubernetes with RBAC implemented.

CNTR-K8-000910

8132

Kubernetes Controller Manager must disable profiling.

CNTR-K8-001400

605213

The Kubernetes API server must use approved cipher suites.

CNTR-K8-001410

81122

Kubernetes API Server must have the SSL Certificate Authority set.

CNTR-K8-001420

81130 & 8214

Kubernetes Kubelet must have the SSL Certificate Authority set.

CNTR-K8-001430

8136

Kubernetes Controller Manager must have the SSL Certificate Authority set.

CNTR-K8-001450

8152

Kubernetes etcd must enable client authentication to secure service.

CNTR-K8-001460

82112

Kubernetes Kubelet must enable tls-private-key-file for client authentication to secure service.

CNTR-K8-001480

8155

Kubernetes etcd must enable client authentication to secure service.

CNTR-K8-001490

81127

Kubernetes etcd must have a key file for secure communication.

CNTR-K8-001510

81131

Kubernetes etcd must have the SSL Certificate Authority set.

CNTR-K8-001550

8154

Kubernetes etcd must have a peer-key-file set for secure communication.

CNTR-K8-002600

81138

Kubernetes API Server must configure timeouts to limit attack surface.

CNTR-K8-003120

81412

The Kubernetes component etcd must be owned by etcd.

CNTR-K8-003130

81414 & 8145

The Kubernetes conf files must be owned by root.

CNTR-K8-003140

8231

The Kubernetes Kube Proxy must have file permissions set to 644 or more restrictive.

CNTR-K8-003150

8232

The Kubernetes Kube Proxy must be owned by root.

CNTR-K8-003160

8227

The Kubernetes Kubelet certificate authority file must have file permissions set to 644 or more restrictive.

CNTR-K8-003170

8228

The Kubernetes Kubelet certificate authority must be owned by root.

CNTR-K8-003180

81427

The Kubernetes component PKI must be owned by root.

CNTR-K8-003210

8230

The Kubernetes kubeadm.conf must be owned by root.

CNTR-K8-003220

8229

The Kubernetes kubeadm.conf must have file permissions set to 644 or more restrictive.

CNTR-K8-003230

8234

The Kubernetes kubelet config must have file permissions set to 644 or more restrictive.

CNTR-K8-003240

8233

The Kubernetes kubelet config must be owned by root.

CNTR-K8-003250

81419 & 81421 & 81423 & 81425

The Kubernetes API Server must have file permissions set to 644 or more restrictive.

CNTR-K8-003260

81411

The Kubernetes etcd must have file permissions set to 644 or more restrictive.

CNTR-K8-003270

81413

The Kubernetes admin.conf must have file permissions set to 644 or more restrictive.

CNTR-K8-003290

81119

The Kubernetes API Server must be set to audit log max size.

CNTR-K8-003290

81118

The Kubernetes API Server must be set to audit log maximum backup.

CNTR-K8-003310

81117

The Kubernetes API Server audit log retention must be set.

CNTR-K8-003320

81116

The Kubernetes API Server audit log path must be set.

CNTR-K8-003330

81428

The Kubernetes PKI CRT must have file permissions set to 644 or more restrictive.

CNTR-K8-003340

81429

The Kubernetes PKI keys must have file permissions set to 600 or more restrictive.

CNTR-K8-002630

81121

Kubernetes API Server must disable token authentication to protect information in transit.

CNTR-K8-002640

81123

Kubernetes endpoints must use approved organizational certificate and key pair to protect information in transit.

CAT III

CAT III is a category code for any vulnerability, which when it exists, degrades measures to protect against loss of Confidentiality, Availability, or Integrity.

The following table lists the CAT III checks implemented in Prisma Cloud, and how they map to existing Prisma Cloud checks. All checks map to CIS Docker Benchmark checks.

STIG ID

Prisma Cloud ID

Description

DKER-EE-002020

511

Docker Enterprise CPU priority must be set appropriately on all containers.

Enable DISA STIG for Docker Enterprise checks

DISA STIG for Docker Enterprise checks have been grouped into a template. Checks are relevant to containers, images, and hosts.

Log into Console.

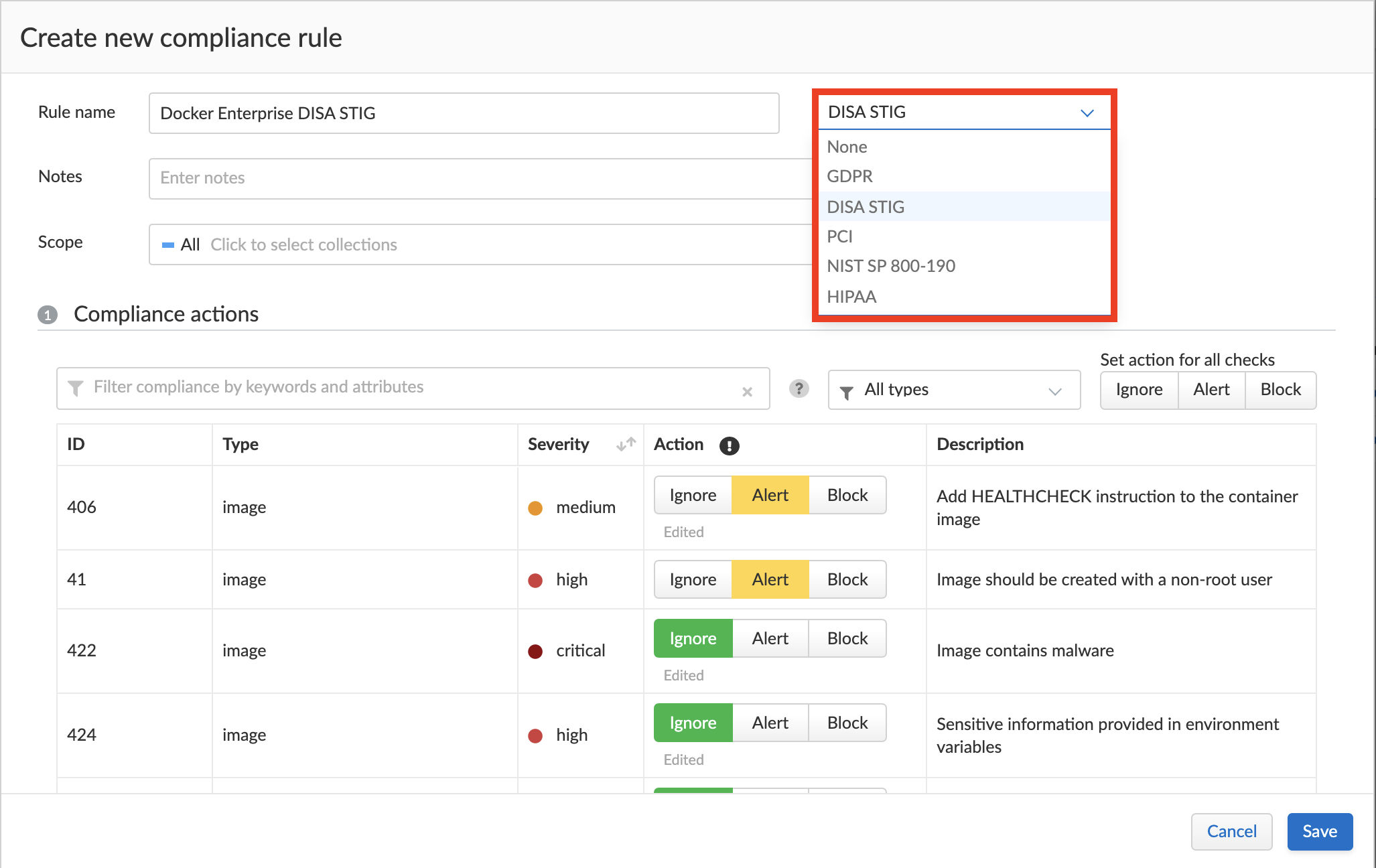

Enable the container checks.
1. Go to Defend > Compliance > Containers and images > {Deployed | CI}.
2. Click Add rule.
3. Enter a rule name.
4. In the Compliance template drop-down, select DISA STIG.
5. Click Save.

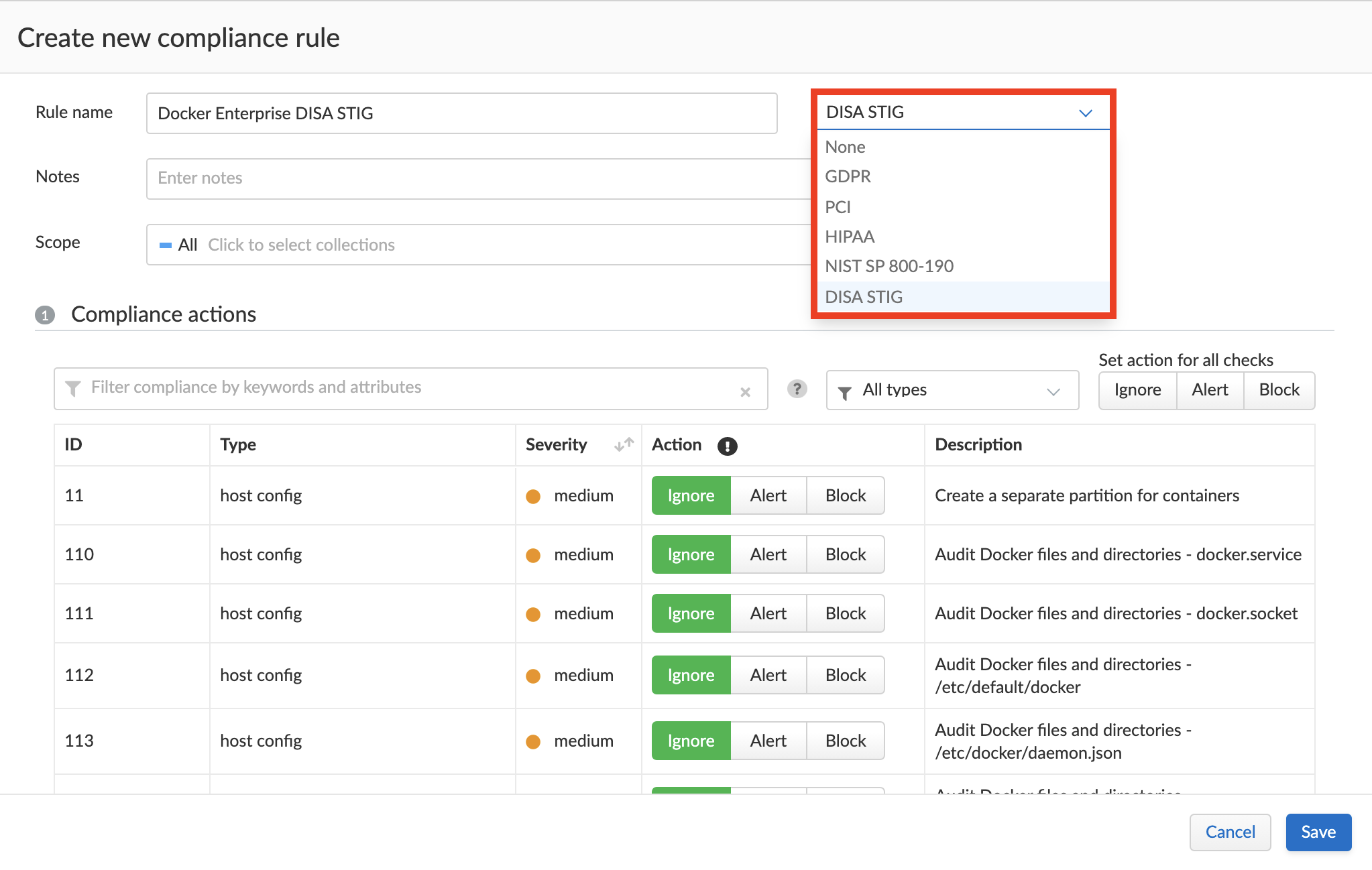

Enable host checks.
1. Go to Defend > Compliance > Hosts > {Running hosts | VM images}.
2. Click Add rule.
3. Enter a rule name.
4. In the Compliance template drop-down, select DISA STIG.
5. Click Save.

PreviousWindows compliance checks NextCustom compliance checks

Last updated 23 days ago

Was this helpful?
