Deploy in FIPS mode

The Console, Defender and twistcli Compute components can run using FIPS140-2 Level 1 validated cryptographic modules. The Compute GoLang components are statically compiled with the BoringCrypto module, using the built-in mechanism introduced in Go1.19 GOEXPERIMENT.

The cipher suites used are:

• TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
• TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
• TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256
• TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384

The following procedures are for self-hosted deployments only.

Deploying Defenders on ARM64 architecture in FIPS mode is not supported.

1. Download the latest release tar bundle from the Palo Alto Networks Customer Support Portal.

   Note that v22.12 or later is certified for FIPS.
2. Untar the release

   $ tar -xzf prisma_cloud_compute_<VERSION>.tar.gz

3. Set the FIPS mode for deployment.

   • For Onebox deployments, modify twistlock.cfg and set the FIPS_ENABLED flag to "true."

     ##### FIPS configuration #####
      # Forces Console and Defender to use FIPS-compliant cryptography, https://csrc.nist.gov/projects/cryptographic-module-validation-program
      FIPS_ENABLED=true

   • For Kubernetes deployments, download the Defender YAML file from Console and and set the FIPS_ENABLED flag to "true."
4. Deploy the Console either via the Onebox or Kubernetes deployment methods.
5. To confirm the Console is running in FIPS mode, login to the Console and go to Manage > Logs > Console and search for "FIPS." FIPSEnabled: true is confirmation that the Console has started in FIPS mode.

   manager.go:73 Starting Console manager: ConsoleCN: STIG.lomsgaupfzzurnlkzzmxivmymh.cx.internal.cloudapp.net, ConsoleSAN: [IP:127.0.0.1 IP:10.0.1.4 IP:172.17.0.1], IsProd: true, DataRecoveryEnabled: true, DefenderPort: 8084, MgmtPortHTTPS: 8083, Version: 22.12.415, FIPSEnabled: true

6. To confirm that the Defender is running in FIPS mode, login to the Console and go to Manage > Defenders > Defenders: Deployed in the Actions column of the Defender(s) click Logs and search for "FIPS."

   defender.go:778 FIPS mode enabled true

7. When using the twistcli command line tool use the FIPS_ENABLED=true variable to enforce FIPS validated TLS communication to the Console, for example:

   $ FIPS_ENABLED=true ./twistcli images scan --address https://127.0.0.1:8083 0c413668ee0d

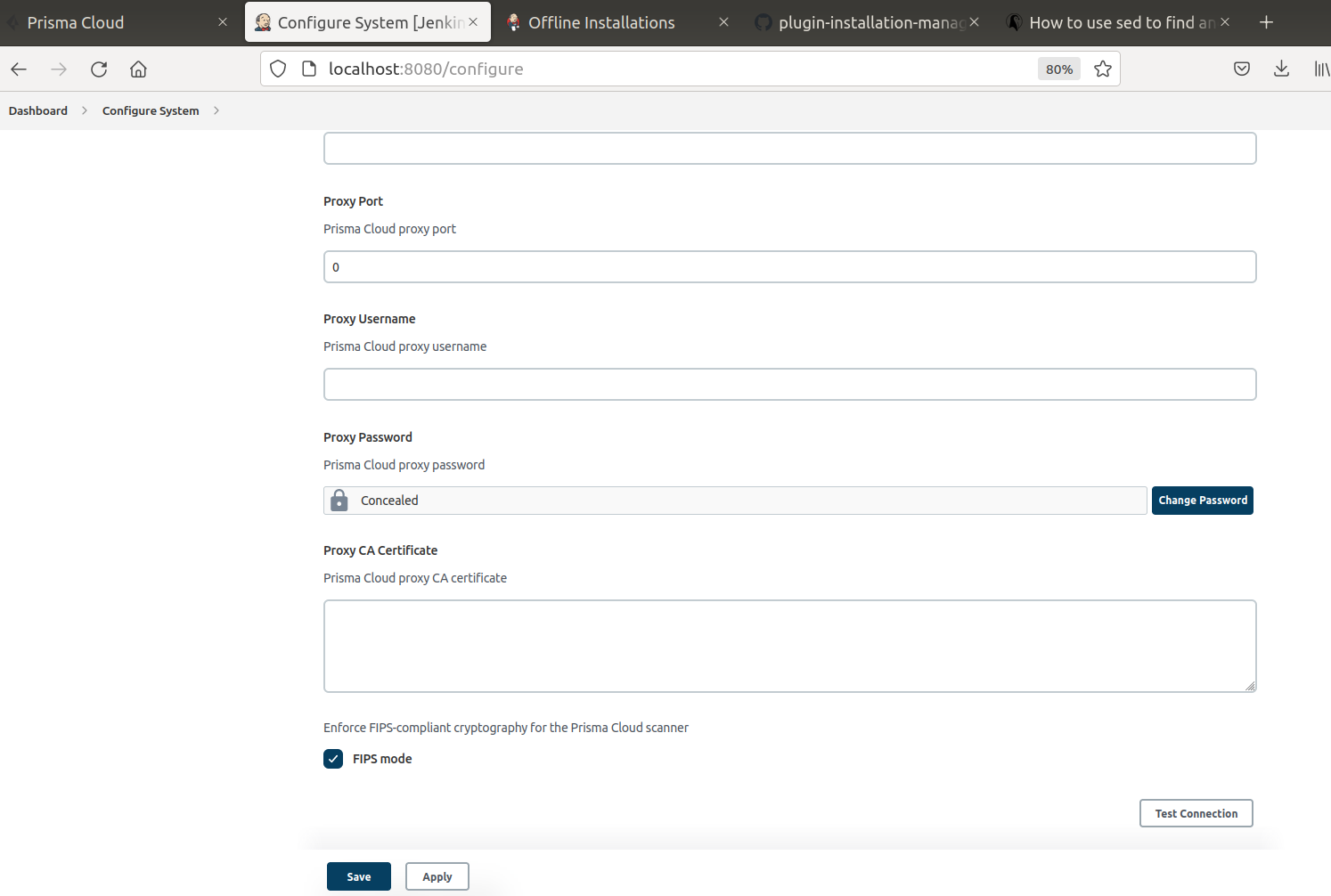

8. The Jenkins plug-in communication to the Console can enforce FIPS compliant TLS traffic, enable FIPS mode in the Prisma Cloud Jenkins plug-in’s configuration.
