Prisma Cloud Console Prerequisites
Allow the following IP addresses and hostnames, used by the different components that comprise Prisma Cloud to ensure contiuned connectivity and monitoring of your cloud environments.
NAT Gateway IP Addresses for Prisma Cloud
Prisma® Cloud uses the following NAT gateway IP addresses. To ensure that you can access Prisma Cloud and the API for any integrations that you enabled between Prisma Cloud and your incidence response workflows, or your agentless deployment or the Prisma Cloud Defenders to communicate with the Prisma Cloud Compute Console, review the list and update the IP addresses in your allow lists.
In the event of disruption due to a disaster, to help backup data in a timely manner, add the Disaster Recovery (DR) IP addresses to your allow lists.
To add these IP addresses to an allow list, you may need to work with your network security team. The configuration for where you set up the allow list is dependent on your network architecture and it could be your firewall, proxy, or the server itself.
The Prisma Cloud URL indicates the region where your tenant is deployed. For example, your tenant is on app3 if your URL is https://app3.prismacloud.io/.
On the Runtime Security > Manage > System > Utilities, find the region in the URL for Path to Console. Use that region to identify the destination IP address, which you must allow or add as trusted to access the Prisma Cloud Compute console. For example, if the URL is https://us-west1.cloud.twistlock.com/us-xxxxxx, us-west1 indicates your Compute console region.

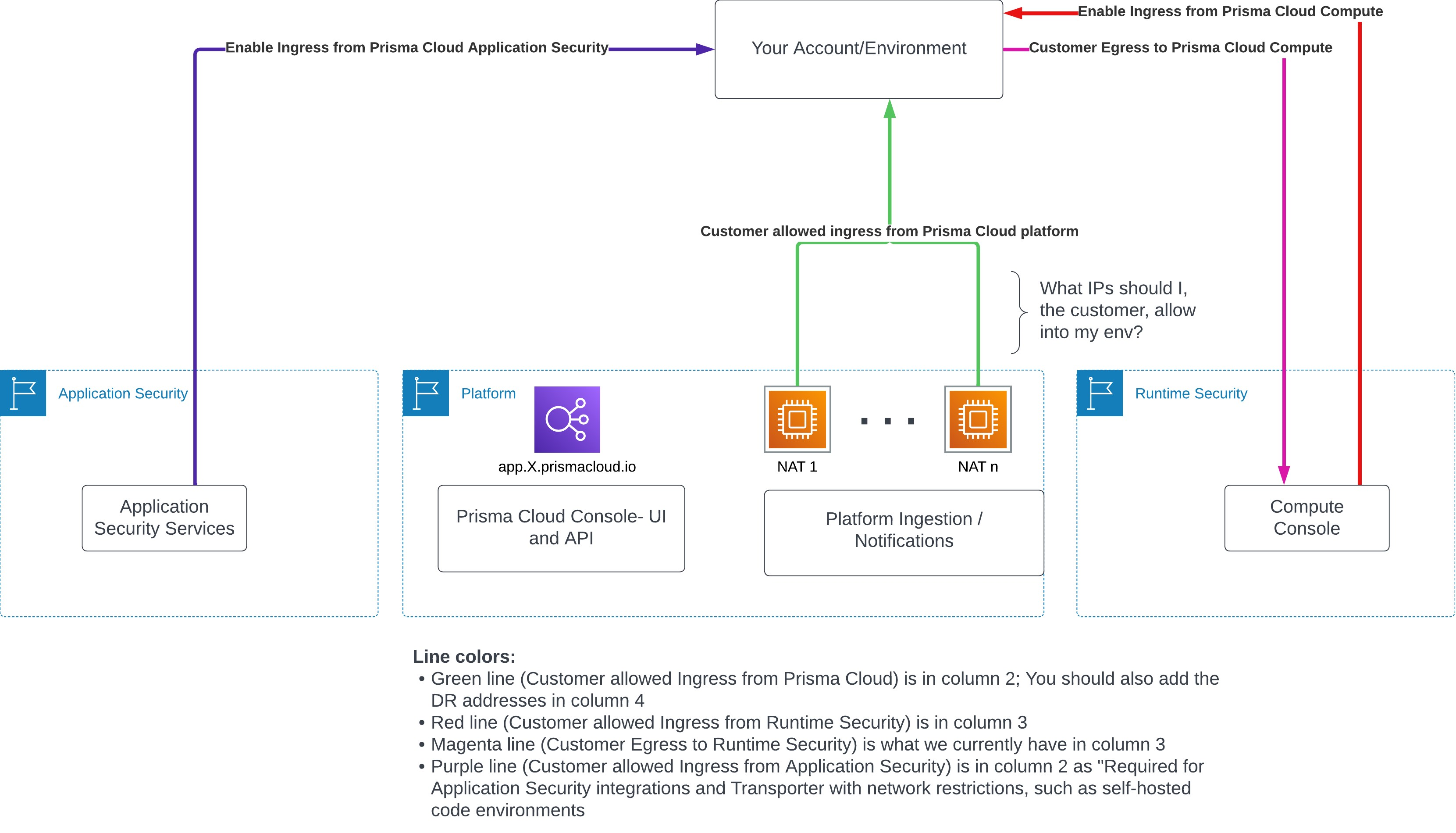

Use the table below to review the IP addresses to allow: Egress-From Defenders to Console; Ingress-From Console in to your environment.
On app3, which is https://app3.prismacloud.io/ for example, will need an outbound security rule for the Egress IP address 34.82.51.12. Compute requires only an outbound rule to Console for Agentless and Defender deployments communications. For sending alerts to your environment, you’d add an inbound security rule to the Ingress IP address 104.198.109.73.
To install Prisma Cloud Defenders in Kubernetes cluster, in addition to being able to connect to the Prisma Cloud Compute Console, the nodes in your cluster must be able to access the Prisma Cloud cloud registry at registry-auth.twistlock.com.
Prisma Cloud URL (AWS Region)
Source IP Address to Allow (Ingress)
Compute SaaS Console Region (GCP)
DR IP Address to Allow
app.prismacloud.io us-east-1 (N.Virginia)
3.210.133.47
3.214.145.192
3.210.87.2
34.235.13.250
44.207.239.90
3.217.51.44
3.218.144.244
18.213.96.188
34.195.27.46
34.199.10.120
34.205.176.82
34.228.96.118
52.201.19.205
52.2.58.117
54.147.35.106
54.144.58.175
54.147.35.106
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
54.147.35.106
3.210.87.2
us-east1 (South Carolina)
Egress: 34.75.54.101
Ingress: 34.74.84.51, 34.139.64.150, 34.139.249.192, 34.23.229.147, 34.74.93.165, 35.185.127.202
52.25.108.159/32
34.213.129.111/32
44.242.81.208/32
52.40.100.6/32
54.71.172.241/32
44.236.217.120/32
app2.prismacloud.io us-east-2 (Ohio)
3.136.199.10
3.16.7.30
3.132.209.81
3.22.252.89
3.139.149.174
3.132.120.136
3.18.252.111
13.59.164.228
18.191.115.70
18.218.243.39
18.221.72.80
18.223.141.221
18.116.185.157
18.223.154.151
18.225.3.219
18.117.28.137
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
3.139.149.174
3.132.209.81
us-east1 (South Carolina)
Egress: 34.75.54.101
Ingress: 34.74.84.51, 34.139.64.150, 34.139.249.192, 34.23.229.147, 34.74.93.165, 35.185.127.202
54.176.152.228/32
54.193.231.56/32
54.219.105.0/32
52.8.73.14/32
52.52.91.251/32
54.215.34.77/32
app3.prismacloud.io us-west-2 (Oregon)
44.233.39.196
52.12.85.11
54.70.207.107
34.208.190.79
52.24.59.168
52.39.60.41
52.26.142.61
54.213.143.171
54.218.131.166
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
52.35.163.8
44.231.203.74
44.231.142.62
us-west1 (Oregon)
Egress: 34.82.51.12
Ingress: 34.82.138.152, 35.230.69.118, 104.198.109.73, 34.19.57.46, 34.83.186.93, 34.168.3.165
34.192.147.35/32
34.205.10.23/32
54.221.206.73/32
54.145.56.75/32
54.152.99.85/32
52.73.209.182/32
app4.prismacloud.io us-west-1 (N.California)
13.52.27.189
13.52.105.217
13.52.157.154
13.52.175.228
50.18.198.235
50.18.117.136
52.52.58.18
52.52.50.152
52.52.110.223
52.52.197.213
52.53.67.144
54.153.31.13
54.193.251.180
54.241.31.130
54.215.44.246
184.72.47.199
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
50.18.117.136
54.215.44.246
us-west1 (Oregon)
Egress: 34.82.51.12
Ingress: 34.82.138.152, 35.230.69.118, 104.198.109.73, 34.19.57.46, 34.83.186.93, 34.168.3.165
3.18.55.196/32
3.18.59.163/32
3.141.248.48/32
3.135.129.242/32
3.22.165.22/32
3.141.146.82/32
app5.prismacloud.io us-east-2 (Ohio)
3.128.141.242
3.129.241.104
3.130.104.173
3.136.191.187
13.59.109.178
18.190.115.80
us-east1 (South Carolina)
Egress: 34.75.54.101
Ingress: 34.74.84.51, 34.139.64.150, 34.139.249.192, 34.23.229.147, 34.74.93.165, 35.185.127.202
app.anz.prismacloud.io ap-southeast-2 (Sydney)
3.104.84.8
3.105.224.202
54.66.162.181
3.104.252.91
13.210.254.18
13.239.110.68
13.55.65.214
13.211.114.167
13.237.94.143
52.62.75.140
52.62.194.176
52.65.17.104
52.64.90.100
54.66.215.148
54.79.91.7
54.206.227.53
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
52.64.90.100
54.206.227.53
asia-northeast1 (Tokyo, Japan) or australia-southeast1 (Sydney, Australia)
Egress: 35.194.113.255, 35.244.121.190
Ingress: 35.200.123.236, 35.189.44.184, 34.116.88.189, 35.189.14.189,
18.176.206.56
35.79.185.43
35.79.234.190
35.79.203.12
54.64.241.193
54.178.36.219
54.64.112.185
app.ca.prismacloud.io ca-central-1 (Canada - Central)
3.97.19.141
3.97.195.202
3.97.251.220
3.97.225.213
3.99.103.226
3.98.226.37
3.96.232.79
3.98.207.92
3.99.103.226
15.223.59.158
15.223.96.201
15.223.127.111
52.60.127.179
99.79.30.121
35.182.209.121
35.183.55.7
35.182.155.223
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
35.183.55.7
3.98.207.92
northamerica-northeast1 (Montréal, Québec)
Egress: 35.203.59.190
Ingress: 35.203.31.67, 34.118.176.160, 34.47.2.35
-
app.prismacloud.cn cn-northwest-1 (Ningxia)
52.82.89.61
52.82.102.153
52.82.104.173
52.83.179.1
52.83.70.13
52.83.77.73
Compute SaaS not supported
-
app.ind.prismacloud.io
13.126.142.108
3.108.78.191
65.0.233.228
15.207.175.101
15.207.56.212
3.108.163.21
3.109.149.80
35.154.114.39
65.1.154.7
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
65.0.226.192
13.127.213.101
asia-south1 (Mumbai)
Egress: 35.200.249.161
Ingress: 35.200.140.118, 34.93.124.157, 34.47.154.73
3.109.168.12
3.111.190.7
13.127.213.101
13.126.158.102
15.206.136.14
43.204.57.225
65.0.226.192
app.id.prismacloud.io ap-southeast-3 (Jakarta)
43.218.52.184/32
43.218.204.143/32
108.136.123.215/32
108.137.193.28/32
43.218.206.19/32
43.218.206.239/32
16.78.11.15/32
16.78.25.100/32
43.218.192.76/32
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
13.248.253.230
3.33.202.249
asia-southeast2 (Jakarta)
Egress: 34.101.179.78, 34.101.75.225, 34.101.158.55
Ingress: 34.101.121.138
-
app.uk.prismacloud.io eu-west2 (London)
13.42.159.205
3.8.248.150
35.176.28.215
3.9.200.0
18.133.126.85
18.134.251.157
18.168.9.241
18.168.51.89
35.176.57.39
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
3.9.243.250
18.133.59.44
europe-west2 (UK)
Egress: 34.105.197.208
Ingress: 34.89.87.128, 34.142.29.59, 34.89.33.47
-
app.eu.prismacloud.io eu-central-1 (Frankfurt)
3.69.215.10
3.73.209.143
3.75.34.63
3.76.108.18
3.121.64.255
3.121.248.165
3.121.107.154
3.123.89.253
3.126.35.83
3.126.161.46
18.184.105.224
18.185.81.104
18.184.42.114
18.198.33.246
18.198.74.25
18.159.139.221
18.192.97.20
52.29.141.235
52.58.36.219
52.211.138.79/32
52.208.61.249/32
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
3.69.215.10
18.159.139.221
europe-west3 (Frankfurt, Germany)
Egress: 34.107.65.220
Ingress: 34.107.91.105, 35.198.174.6, 34.141.93.246, 34.141.89.174, 34.141.2.56, 35.198.185.51, 34.247.199.145/32
3.65.146.60/32
3.65.81.38/32
3.65.16.200/32
3.65.81.86/32
3.248.43.139/32
54.73.199.140/32
52.209.24.141/32
18.198.160.165/32
18.194.43.28/32
app2.eu.prismacloud.io eu-west-1 (Ireland)
52.208.88.215
54.170.230.172
54.72.135.50
18.200.200.125
3.248.26.245
99.81.226.57
52.208.244.121
18.200.207.86
63.32.161.197
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
54.170.182.84
79.125.19.221
europe-west2 (UK)
Egress: 34.105.197.208
Ingress: 34.89.87.128, 34.142.29.59, 34.89.33.47
18.135.53.56
3.9.243.250
18.170.22.143
18.133.59.44
18.170.145.42
18.134.51.101
18.170.187.88
app.fr.prismacloud.io eu-west-3 (Paris)
13.37.138.49
13.37.20.19
13.39.40.33
13.37.126.150
13.38.189.211
13.36.26.86
15.236.58.164
15.188.106.72
15.188.116.74
15.188.46.120
15.188.209.236
15.188.0.67
35.181.110.153
35.180.236.144
52.47.148.170
52.47.117.46
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
35.180.236.144
52.47.148.170
europe-west9 (Paris, France)
Egress: 34.163.33.98
Ingress: 34.163.186.175, 34.163.241.103, 34.163.12.56
-
app.gov.prismacloud.io us-gov-west-1 (AWS GovCloud US-West)
3.32.253.13
3.30.72.123
3.32.126.62
15.200.146.166
15.200.89.211
44.231.203.74
44.231.142.62
52.35.163.8
52.35.163.8
us-west1 (Oregon)
Egress: 34.82.51.12, 35.230.86.130
Ingress: 34.82.138.152, 35.230.69.118, 104.198.109.73, 34.19.57.46, 34.83.186.93, 34.168.3.165
app.jp.prismacloud.io ap-northeast-1 (Tokyo)
18.178.170.193
18.182.113.156
3.114.23.157
13.114.192.248
13.230.74.246
18.180.127.96
35.75.84.20
35.76.22.242
54.249.107.1
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
35.79.185.43
54.178.36.219
asia-northeast1 (Tokyo, Japan, APAC)
Egress: 35.194.113.255
Ingress: 35.200.123.236, 35.187.195.198, 34.85.99.145
-
app.sg.prismacloud.io ap-southeast-1 (Singapore)
3.0.37.2
13.250.152.72
13.251.200.128
13.250.248.219
13.229.192.152
18.136.72.0
18.139.106.36
18.142.98.147
18.139.183.196
18.136.115.165
52.76.28.40
52.76.70.227
52.221.36.124
52.221.157.53
52.76.202.193
52.76.80.172
54.251.48.202
54.179.51.255
122.248.219.240
Required for Transporter and Application Security integrations with network restrictions, such as self-hosted code environments.
3.0.37.2
54.251.48.202
asia-southeast1 (Singapore)
Egress: 35.198.194.238
Ingress: 34.87.137.141, 35.186.153.185, 34.87.100.14
-
Data Security on Prisma Cloud US
3.128.230.117
3.14.212.156
3.22.23.119
20.9.80.30
20.9.81.254
20.228.128.132
20.228.250.145
20.253.198.116
20.253.198.147
Data Security on Prisma Cloud EU
3.64.66.135
18.198.52.216
3.127.191.112
20.223.237.240
20.238.97.44
20.26.194.122
51.142.252.210
51.124.198.75
51.124.199.134
Due to compliance reasons, backup/Disaster Recovery (DR) IP addresses are not supported in some regions.
Prisma Cloud Administrative Console
Allow access to the following domains, to use the Prisma Cloud user interface:
Palo Alto Networks sub domains.
You can add *.paloaltonetworks.com to include all of the following URLs:
apps.paloaltonetworks.com
autofocus.paloaltonetworks.com
docs.paloaltonetworks.com
identity.paloaltonetworks.com
live.paloaltonetworks.com
login.paloaltonetworks.com
support.paloaltonetworks.com
Some additional URLs are also required for the Prisma Cloud Administrative Console.
Prisma Cloud tenant URL
The URL for Prisma Cloud varies depending on the region and cluster on which your tenant is deployed. Your welcome email will include one of the following URLs that is specific to the tenant provisioned for you:
Make sure you whitelist *.network.prismacloud.io in order for your RQL Network queries to work.
Prisma Cloud API interface
api*.*.prismacloud.io. See API URLs for your Prisma Cloud tenant.
URLs associated with the sign-in and status updates for Prisma Cloud
assets.adobedtm.com
cloudfront.net
dpm.demdex.net
google.com
google.com/recaptcha/
gstatic.com
gstatic.com/recaptcha/
polyfill.io
wss://*.prismacloud.io
Cloud Workload Protection (CWP) capabilities
*.twistlock.com, for access to the CWP capabilities available on the Compute tab on the Prisma Cloud console.
Cloud Network Security (CNS) /Microsegmentation capabilities
*.network.prismacloud.io, for access to the Microsegmentation capabilities that are enabled on the Network Security tab on the Prisma Cloud console.
Application Security capabilities
*.bridgecrew.cloud, for the Application Security capabilities that are enabled on the Application Security and Settings tab on the Prisma Cloud console. Ensure that you’ve selected Application Security in the Prisma Cloud switcher to access the customized navigation for Application Secturity. The Application Security Configuration is under Settings.
When using Checkov to scan repositories and report the findings, you must allow access to the following domains if:
You’re running Checkov within your pipeline, enable access for the machine running Checkov.
If you’re running the IDE extension on your local machine, enable access on the local machine.
Prisma Cloud URL is on
API Gateway
S3 bucket for uploading findings
S3 bucket for routing to the correct S3 bucket
app3
api3.prismacloud.io
bc-scanner-results-890234264427-prod.s3.us-west-2.amazonaws.com bc-scanner-results-890234264427-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-890234264427-prod.s3.us-west-2.amazonaws.com
bc-scanner-results-890234264427-prod.s3.us-west-2.amazonaws.com
app0
api0.prismacloud.io
bc-scanner-results-469330042197-prod.s3.us-east-1.amazonaws.com bc-scanner-results-469330042197-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-469330042197-prod.s3.us-east-1.amazonaws.com
bc-scanner-results-469330042197-prod.s3.us-west-2.amazonaws.com
app
api.prismacloud.io
bc-scanner-results-838878234734-prod.s3.us-east-1.amazonaws.com bc-scanner-results-838878234734-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-838878234734-prod.s3.us-east-1.amazonaws.com
bc-scanner-results-838878234734-prod.s3.us-west-2.amazonaws.com
app2
api2.prismacloud.io
bc-scanner-results-612480224350-prod.s3.us-east-2.amazonaws.com bc-scanner-results-612480224350-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-612480224350-prod.s3.us-east-2.amazonaws.com
bc-scanner-results-612480224350-prod.s3.us-west-2.amazonaws.com
app4
api4.prismacloud.io
bc-scanner-results-540411623009-prod.s3.us-west-1.amazonaws.com bc-scanner-results-540411623009-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-540411623009-prod.s3.us-west-1.amazonaws.com
bc-scanner-results-540411623009-prod.s3.us-west-2.amazonaws.com
app.ca
api.ca.prismacloud.io
bc-scanner-results-205367576728-prod.s3.ca-central-1.amazonaws.com bc-scanner-results-205367576728-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-205367576728-prod.s3.ca-central-1.amazonaws.com
bc-scanner-results-205367576728-prod.s3.us-west-2.amazonaws.com
app.eu
api.eu.prismacloud.io
bc-scanner-results-836922451682-prod.s3.eu-central-1.amazonaws.com bc-scanner-results-836922451682-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-836922451682-prod.s3.eu-central-1.amazonaws.com
bc-scanner-results-836922451682-prod.s3.us-west-2.amazonaws.com
app2.eu
api2.eu.prismacloud.io
bc-scanner-results-800009193461-prod.s3.eu-west-1.amazonaws.com bc-scanner-results-800009193461-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-800009193461-prod.s3.eu-west-1.amazonaws.com
bc-scanner-results-800009193461-prod.s3.us-west-2.amazonaws.com
app.ind
api.ind.prismacloud.io
bc-scanner-results-018169107740-prod.s3.ap-south-1.amazonaws.com bc-scanner-results-018169107740-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-018169107740-prod.s3.ap-south-1.amazonaws.com
bc-scanner-results-018169107740-prod.s3.us-west-2.amazonaws.com
app.id
api.id.prismacloud.io
bc-scanner-results-457807942906-prod.s3.ap-southeast-3.amazonaws.com bc-scanner-results-457807942906-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-457807942906-prod.s3.ap-southeast-3.amazonaws.com
bc-scanner-results-457807942906-prod.s3.us-west-2.amazonaws.com
app.fr
api.fr.prismacloud.io
bc-scanner-results-063178804405-prod.s3.eu-west-3.amazonaws.com bc-scanner-results-063178804405-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-063178804405-prod.s3.eu-west-3.amazonaws.com
bc-scanner-results-063178804405-prod.s3.us-west-2.amazonaws.com
app-uk
api.uk.prismacloud.io
bc-scanner-results-580360239683-prod.s3.eu-west-2.amazonaws.com bc-scanner-results-580360239683-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-580360239683-prod.s3.eu-west-2.amazonaws.com
bc-scanner-results-580360239683-prod.s3.us-west-2.amazonaws.com
app.jp
api.jp.prismacloud.io
bc-scanner-results-510882576293-prod.s3.ap-northeast-1.amazonaws.com bc-scanner-results-510882576293-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-510882576293-prod.s3.ap-northeast-1.amazonaws.com
bc-scanner-results-510882576293-prod.s3.us-west-2.amazonaws.com
app.sg
api.sg.prismacloud.io
bc-scanner-results-277833049433-prod.s3.ap-southeast-1.amazonaws.com bc-scanner-results-277833049433-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-277833049433-prod.s3.ap-southeast-1.amazonaws.com
bc-scanner-results-277833049433-prod.s3.us-west-2.amazonaws.com
app.anz
api.anz.prismacloud.io
bc-scanner-results-607751493482-prod.s3.ap-southeast-2.amazonaws.com bc-scanner-results-607751493482-prod.s3-accelerate.amazonaws.com bc-vulnerabilities-utilities-607751493482-prod.s3.ap-southeast-2.amazonaws.com
bc-scanner-results-607751493482-prod.s3.us-west-2.amazonaws.com
Adoption Advisor *.ingest.sentry.io
Launch Darkly
*.launchdarkly.com, to enable preview access to features. Also refer to the public IP address list for Launch Darkly.
Pendo
Prisma Cloud uses Pendo for in-app analytics.
app.pendo.io
data.pendo.io
cdn.pendo.io
us.pendo.io, *.us.pendo.io
*.storage.googleapis.com
Feature request submissions
prismacloud.ideas.aha.io cdn.aha.io
secure.gravatar.com
s3.amazonaws.com
Images and fonts
use.typekit.net
p.typekit.net
fonts.googleapis.com
*.storage.googleapis.com
fonts.gstatic.com
mt.google.com
Palo Alto Support Portal and LiveCommunity
static.cloud.coveo.com
platform.cloud.coveo.com
nebula-cdn.kampyle.com
maxcdn.bootstrapcdn.com
use.fontawesome.com
ajax.googleapis.com
prod.hosted.lithcloud.com
static.hotjar.com
vars.hotjar.com
assets.adobedtm.com
paloaltonetworks.hosted.panopto.com
cdn.embed.ly
tag.demandbase.com
paloaltonetworks.d1.sc.omtrdc.net
cloudfront.net
cdn.pendo.io
data.pendo.io
firestore.googleapis.com
use.typekit.net
p.typekit.net
*.youtube.com
Last updated
Was this helpful?
